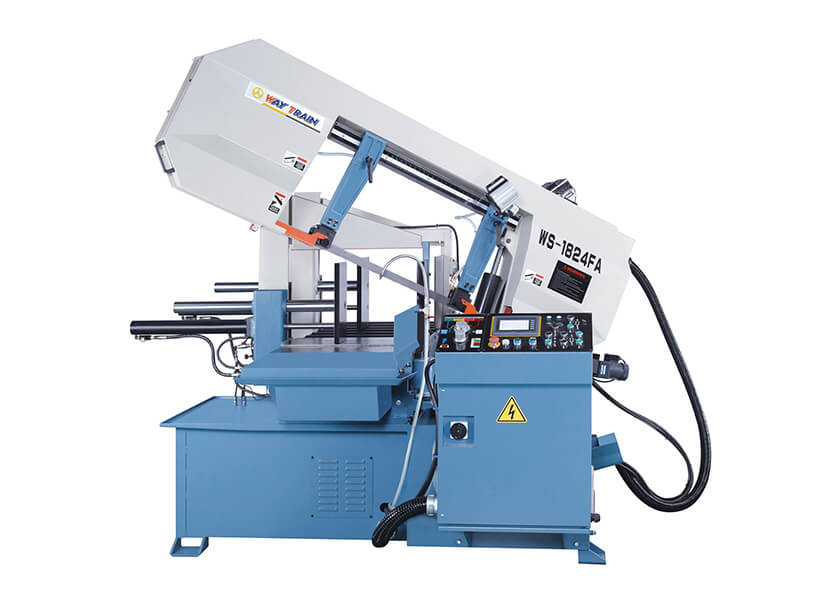

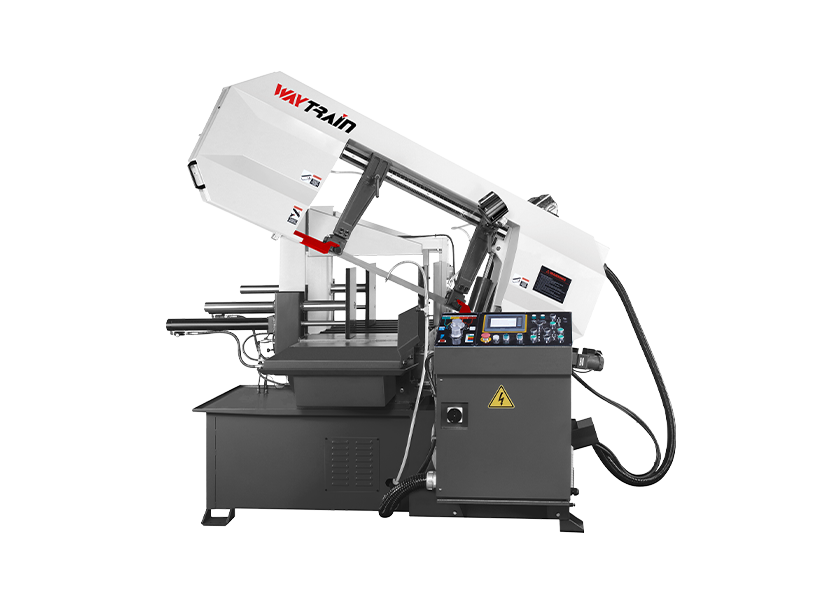

18" Fully Automatic Miter Cutting Band Saw

WS-1824FA
18" Fully Automatic Miter Cutting Band Saw
18" Fully Automatic Miter Cutting Band Saw
H 460 W 600
  • Swivel saw bow to get angle cutting (R45˚) by manual
  • Inverter controls blade speed
  • Human-machine interface control panel
  • Can save 10 cutting presets memory
  • Encoder controlled cutting length setting
  • Full stroke hydraulic vises
  • Vertical press vise for bundle cutting
  • Set bow height by manual
  • Vise pressure regulator
  • Hydraulic blade tension
  • Hydraulic automatic chip conveyor
  • Power driven wire brush
Specifications
Capacity 90° (H x W) 460 mm
460 x 460 mm
460 x 590 mm
400 x 610 mm 		Capacity 45° (H x W) 380 mm
380 x 380 mm
460 x 410 mm
300 x 450 mm
Blade Size  41 x 1.3 x 5330 mm Blade Speed  30 ~ 85 mpm
Blade Motor 5 HP (3.74 kw)  AC Hydraulic Motor 1 HP (0.75 kw)
Coolant Pump  1/6 HP (0.12kw) Hydraulic Tank 25 L
Coolant Tank  110 L　　 Table Height 925 mm
Feeding Storke  700 mm Packing Size  2980 x 2290 x 2000 mm
N.W/G.W 2510 kg / 2681 kg
Accessories (optional)
WS-46G2
