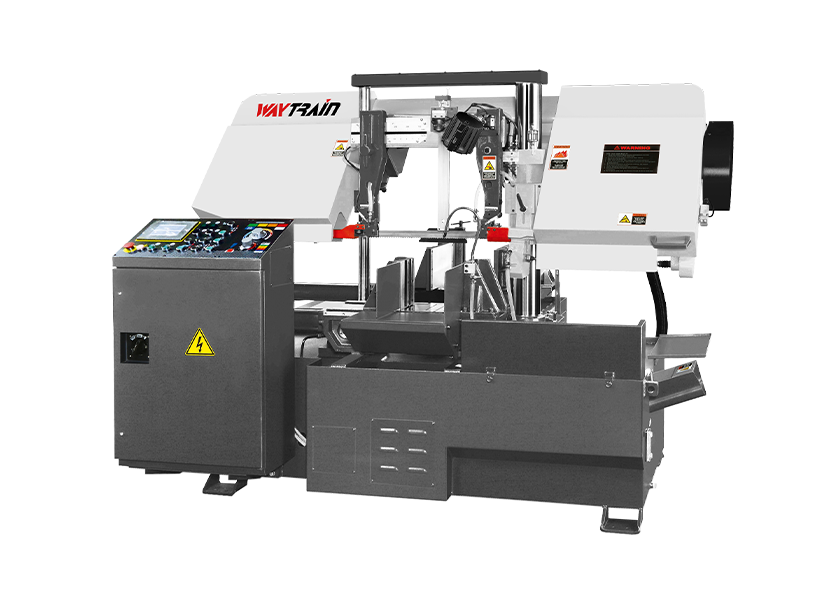

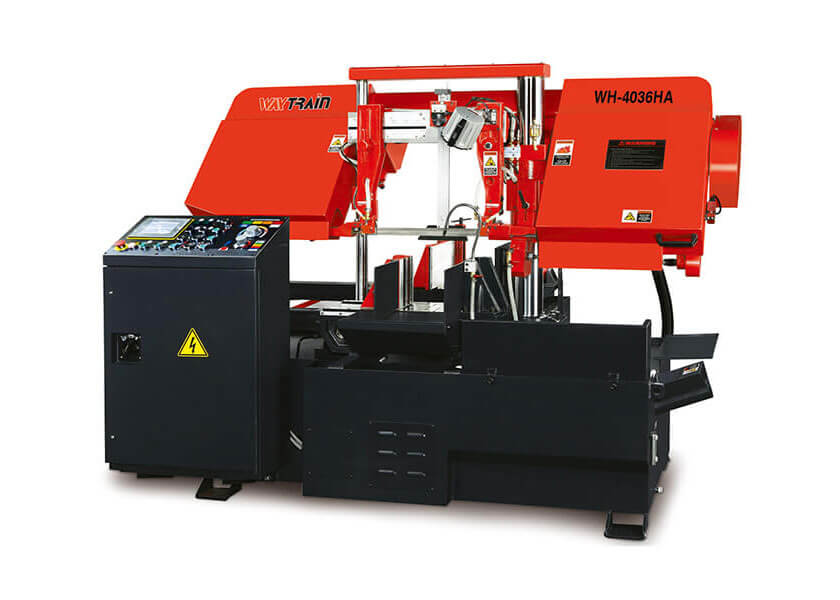

14" Fully Automatic Double Column Band Saw Machine

WH-4036HA
H 360 W 400
  • Inverter controls blade speed
  • Human-machine interface control panel
  • Can save 10 cutting presets memory
  • Encoder controlled cutting length setting
  • Full stroke hydraulic vises
  • Hydraulic blade tension
  • Hydraulic automatic chip conveyor
  • Hydraulic carbide blade guide
  • Power driven wire brush
  • Vise pressure regulator(option)
  • Blade deviation detector device(option)
Specifications
Capacity (H x W) 360 mm
360 x 400 mm
Bundle Cutting (W x H) 180~280 x 50~160 mm
Minimum No Material Detecting 32 mm Blade Size 34 x 1.1 x 4570 mm
Blade Speed 25~75 mpm Blade Motor 5 HP (3.75 kW)
Hydraulic Motor 1 HP (0.75 kW) Coolant Pump 1/6 HP (0.125 kW)
Hydraulic Tank 45 L Coolant Tank 90 L
Cut off Length  Over 10 mm Feeding Stroke 400 mm
Table Height 755 mm Minimum Residual Work Length 100 mm
Packing Size 2370 x 2260 x 2000 mm N.W./G.W. 1765 kg / 1885 kg
