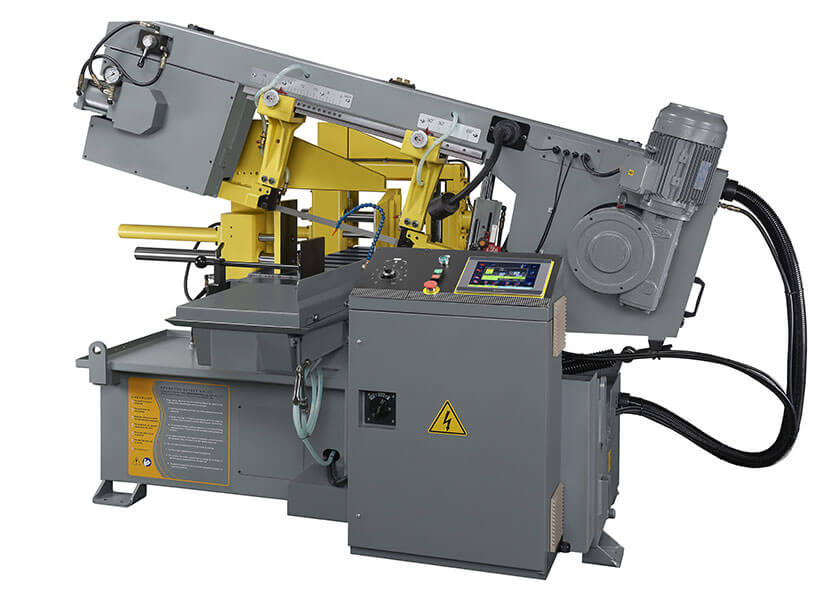

13" Automatic Miter Cutting Band Saw

WS-20FAP
13" Automatic Miter Cutting Band Saw

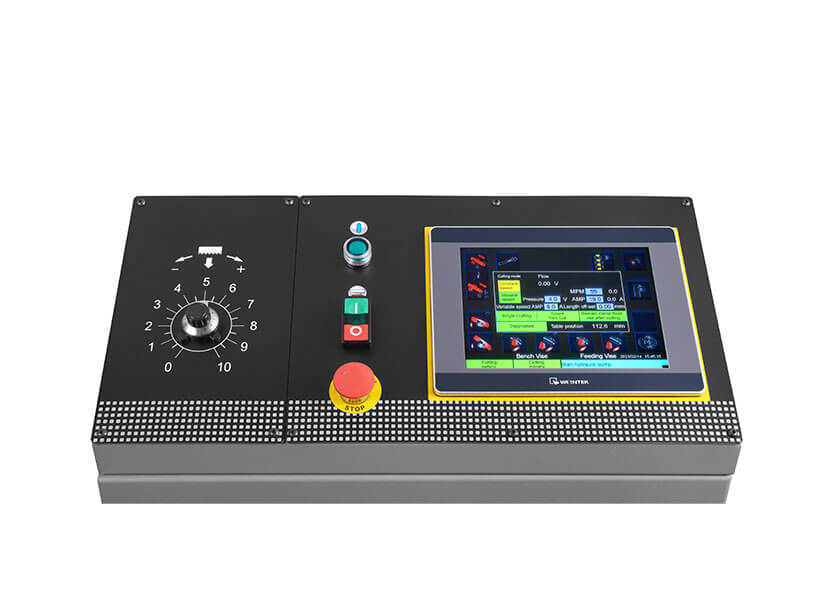

3D HMI Control Panel
13" Automatic Miter Cutting Band Saw
H 330 W 405
  • Swivel saw bow to get angle cutting (R60˚) by manual
  • New upgraded edition - Human-Machine-Interface control panel provides an easy and simple operating system for users
  • Advanced Operation Assistance Systems，build-in 12 different error conditions with 3D machine error indication display on screen
  • Advanced Intelligent assistance systems, with hardness of material to control cutting force, results in best performance and extend blade life
  • Advanced Intelligent assistance systems, with workpiece size to control bow down rate intelligently and results in energy and cost saving
  • Inverter controls blade speed and it is easy to adjust the speed for various materials
  • Encoder controlled cutting length setting
  • The floating vice can avoid the interference between the shuttle vise and material with material deformations during the back to clamp
  • Hydraulic vertical press vises are used to bundle cutting, it's not easy of loose for material
  • Hydraulic blade tension device, keep the stable blade tension, extend the blade life
Specifications
Capacity 90° (H x W) 330 mm
330 x 330 mm
330 x 405 mm		 Capacity 45° (H x W) 290 mm
290 x 290 mm
240 x 330 mm
Capacity 60° (H x W) 380 mm
380 x 380 mm		 Blade Size 34 x 1.1 x 4720 mm
Blade Speed 33~105 mpm Blade Motor 5 HP (3.7 kW)
Hydraulic Motor 1 HP (0.75 kW) Coolant Pump 1/8 HP (0.1 kW)
Hydraulic Tank 28 L Coolant Tank 83 L
Table Height 870 mm Packing Size 2365 x 2072 x 1635 mm
N.W / G.W 1790 Kg / 1896 Kg
Accessories (optional)

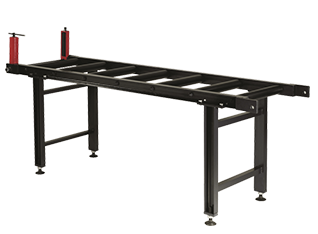

LX-20G2
