LX-20G2
10" Fully Automatic Band Saw
H 250
W 300
- Inverter controls blade speed
- Human-machine interface control panel
- Can save 10 cutting presets memory
- Encoder controlled cutting length setting
- Full stroke hydraulic vises
- Hydraulic blade tension
- Hydraulic automatic chip conveyor
- Hydraulic carbide blade guide
- Power driven wire brush
- Vise pressure regulator(option)
- Blade deviation detector device(option)
Specifications
| Capacity (H x W) |
 250 mm 250 x 300 mm |
Bundle Cutting (WxH) | 100 ~ 130 x 150 ~ 250 mm |
| Minimum No Material Detecting | 32 mm | Cut off Length | Over 10 mm |
| Cutting Amount Setting | 1 ~ 9999 | Blade Size | 34 x 1.1 x 3510 mm |
| Blade Speed | 30~85 mpm | Main Motor | 3 HP (2.2kW) |
| Hydraulic Motor | 1 HP (0.75kW) | Coolant Pump | 1/6 HP (0.12kW) |
| Hydraulic Tank | 35 L | Coolant Tank | 80 L |
| Feeding Stroke | 400 mm | Table Height | 750 mm |
| Packing Size | 2215 x 2210 x 1660 mm | N.W. / G.W. | 1448 kg / 1558 kg |
Accessories (optional)
Added to your inquiry

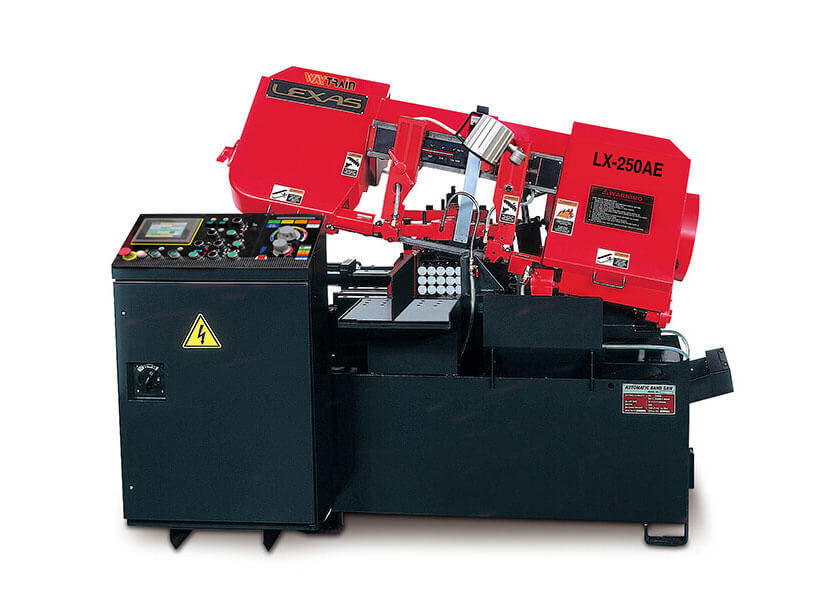

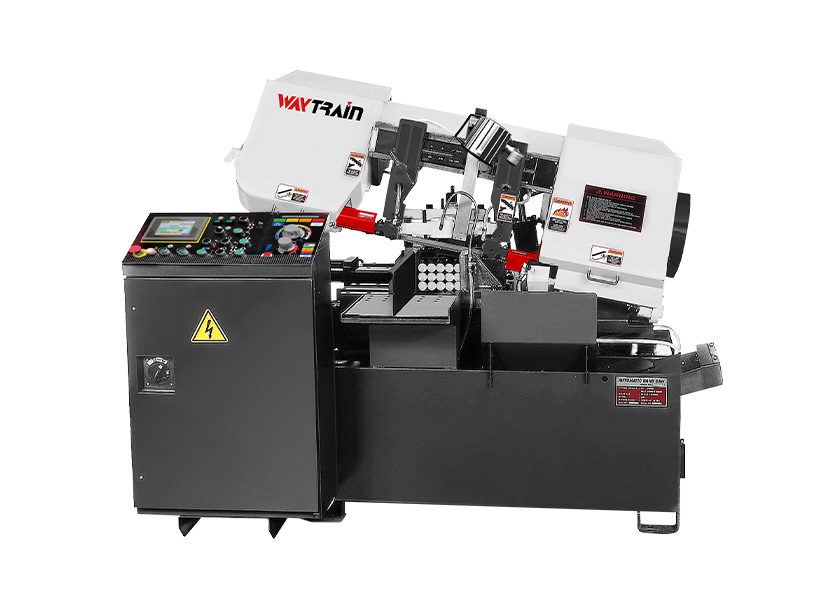

LX-250AE
10" Fully Automatic Band Saw
