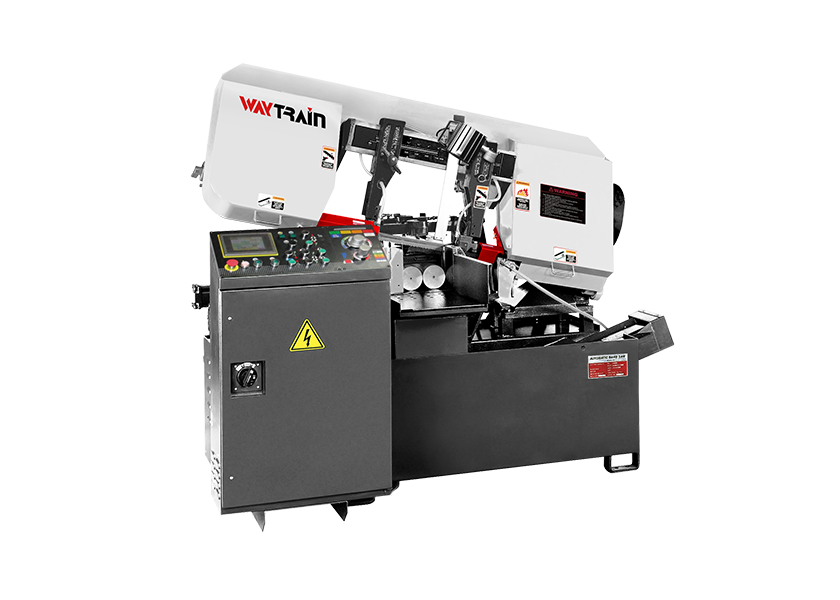

13" Fully Automatic Band Saw - WAY TRAIN

H 330 W 330

Inverter controls blade speed
Human-machine interface control panel
Can save 10 cutting presets memory
Encoder controlled cutting length setting
Full stroke hydraulic vises
Hydraulic blade tension
Hydraulic automatic chip conveyor
Hydraulic carbide blade guide
Power driven wire brush
Vise pressure regulator(option)
Blade deviation detector device(option)

Specifications

Capacity (H x W)	330 mm 330 x 330 mm	Bundle Cutting (HxW)	120 ~ 200 x 150 ~ 250 mm
Minimum No Material Detecting	32 mm	Cut off Length	Over 10 mm
Cutting Amount Setting	1 ~ 9999	Blade Size	34 x 1.1 x 4100 mm
Blade Speed	30~85 mpm	Main Motor	5 HP (3.74 kW)
Hydraulic Motor	1 HP (0.75kW)	Coolant Pump	1/6 HP (0.12kW)
Hydraulic Tank	35 L	Coolant Tank	80 L
Feeding Stroke	400 mm	Table Height	760 mm
Packing Size	2215 x 2210 x 1660 mm	N.W. / G.W.	1540 kg / 1800 kg

Accessories (optional)
