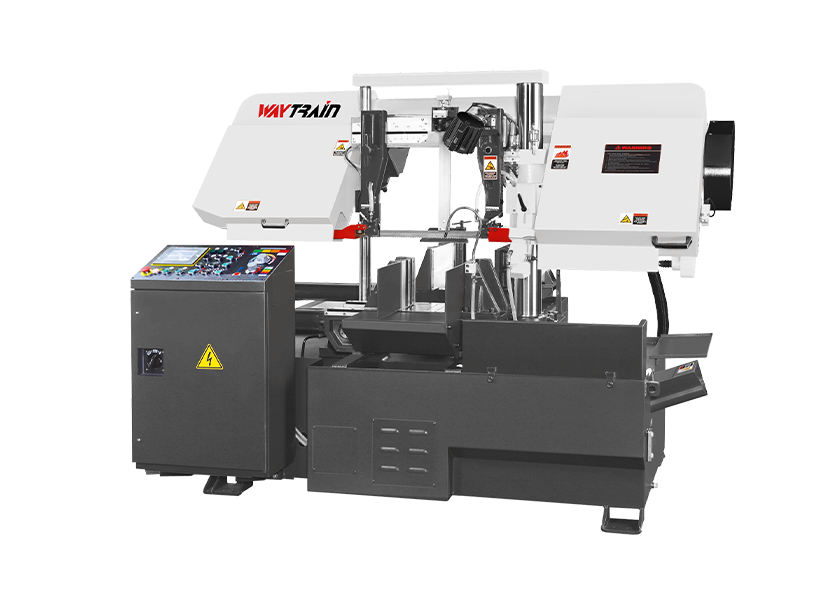

WH-5046HA 18" Fully Automatic Double Column Band Saw Machine: Experience the Difference with Way Train

H 460 W 500

Inverter controls blade speed
Human-machine interface control panel
Can save 10 cutting presets memory
Encoder controlled cutting length setting
Full stroke hydraulic vises
Hydraulic blade tension
Hydraulic automatic chip conveyor
Hydraulic carbide blade guide
Power driven wire brush
Vise pressure regulator(option)
Blade deviation detector device(option)

Specifications

Capacity (H x W)	460 mm 460 x 500 mm	Bundle Cutting (WxH)	220~ 400 x 100 ~ 250 mm
Minimum No Material Detecting	32 mm	Blade Size	41 x 1.3 x 5450 mm
Blade Speed	30 ~ 85 mpm	Blade Motor	7.5 HP (5.6 kW)
Hydraulic Motor	2 HP (1.5 kW)	Coolant Pump	1/4 HP (0.2 kW)
Hydraulic Tank	60 L	Coolant Tank	120 L
Cut off Length	Over 10 mm	Feeding Stroke	500 mm
Table Height	820 mm	Minimum Residual Work Length	120 mm
Packing Size	2820 x 2280 x 2240 mm	N.W./G.W.	3050 kg / 3215 kg

Accessories (optional)
