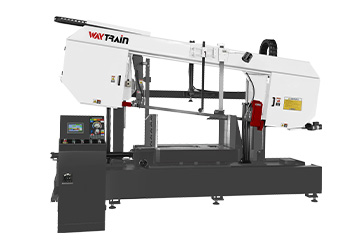

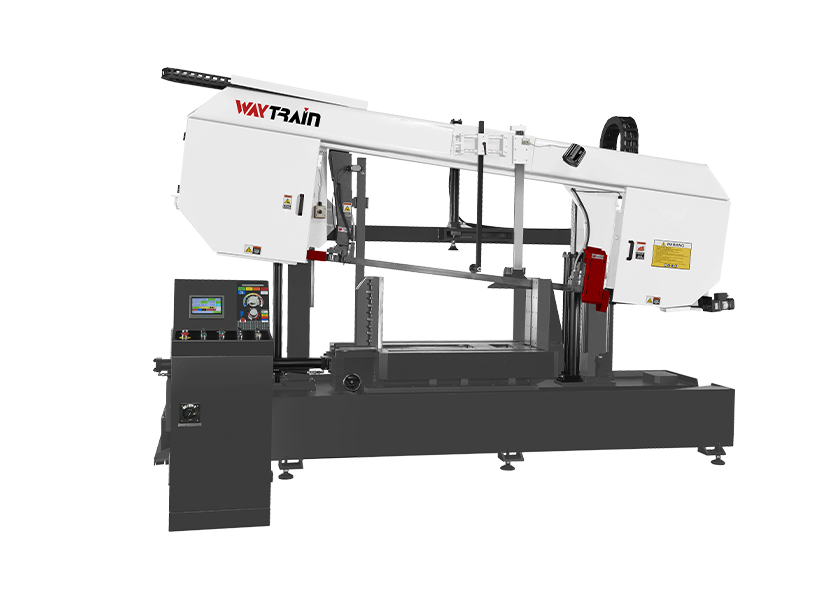

25" Heavy Duty Horizontal Band Saw Machine - Semi-Auto

RL-650A
25" Heavy Duty Horizontal Band Saw Machine
25" Heavy Duty Horizontal Band Saw Machine - Semi-Auto
H 650 W 1100
  • Blade tilt 6.5 ˚ for section steel or steel plate easy cutting
  • Inverter controls blade speed
  • Notifications of malfunction diagnosing on screen
  • Blade guide arm auto-moving
  • Cutting start noise abatement device
  • Hydraulic carbide guides device
  • Quickly down material feeler
  • Hydraulic blade tension
  • Motor driven chip brush
  • Vise pressure regulator(Option)
  • Hydraulic vertical press vise(Option)
Specifications
Capacity (H x W) 650 mm
650 x 1100 mm		 Blade Size 54 x 1.6 x 8700 mm
Blade Speed 30~110 mpm Blade Motor 10 HP (7.5 kW)
Hydraulic Motor 3 HP (2.25 kW) Coolant Pump 1/4 HP (0.19 kW)
Brush Motor 60 W Hydraulic Tank 80 L
Coolant Tank 180 L Table Height 830 mm
Packing Size 4550 x 2270 x 2560 mm N.W. / G.W. 4300 kg
Accessories (optional)
PR-650
