High Speed Automatic Circular Sawing Machine

WS-50C

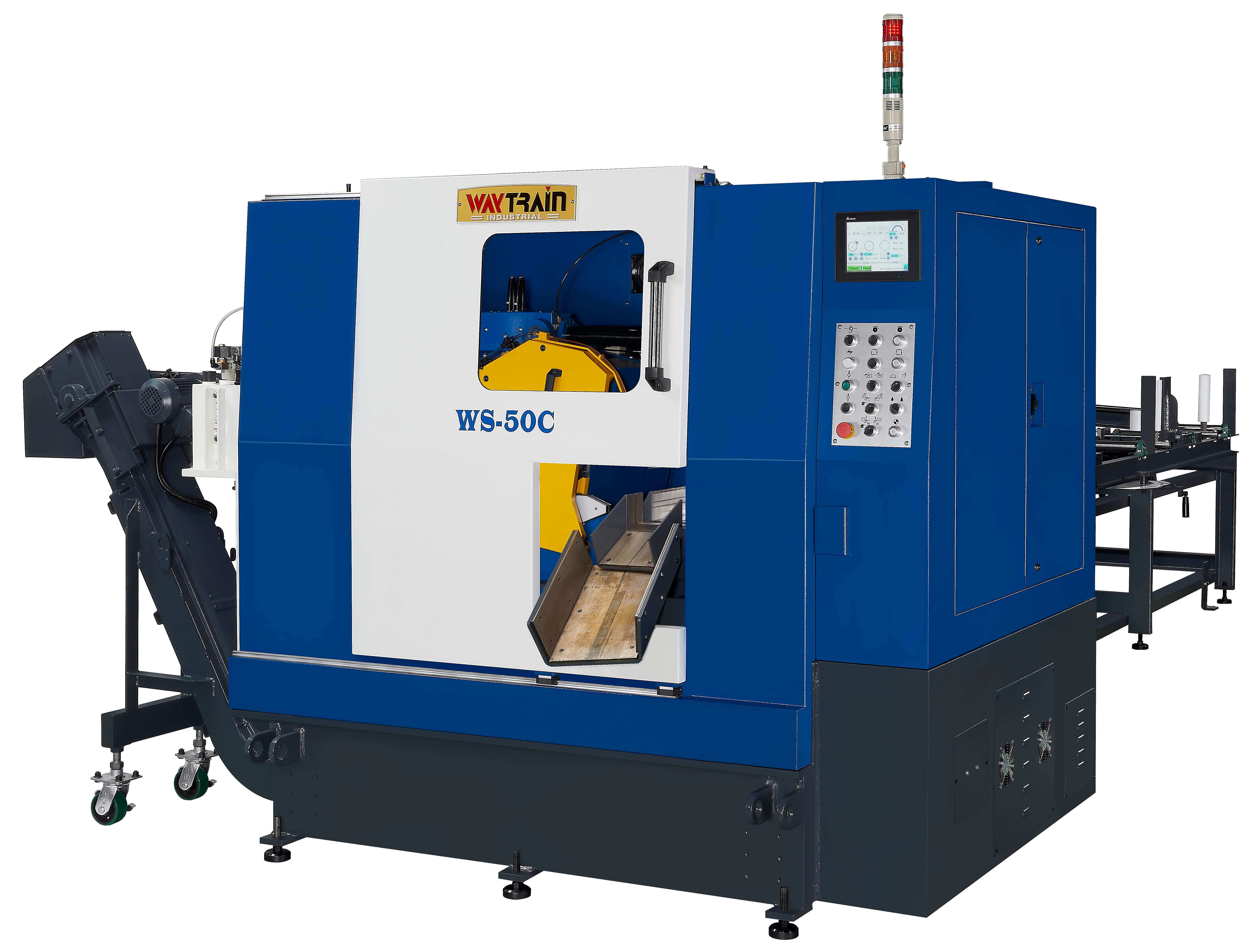

WS-50C High Speed Automatic Circular Sawing Machine
High Speed Automatic Circular Sawing Machine
H 50 W 42
    • The backlashless gear reducer for full load efficiency cutting
    • The automatic detection of diameter could be prevented the cutting interference
    • The AC servo motor bar feeding system by ball screw and floating saddle for accurate feeding movement and cutting position
    • The vertical cylinder press keep workpiece more firm and not easy of loose and backward during clamping
    • The linear guide allows door to push out and slide back upon opening smoothly
    • Mist oil spray to lubricate blade for cutting lifespan
    • Set the lubricant needed for automatic, punctual, and accurate injection of the machine per 160 hours
    • Human-machine interface control panel is easy to set and operate, it can save multiset cutting presets memory
    • The spiral designed chip conveyor for chip removal easily
Specifications
Cutting Capacity (H x W) 10 - 50 mm
10 x 10 - 42 x 42 mm		 Residual Length 55 mm + Cutting Length
Blade Motor
 7.5 HP (5.5kW)
 Feeding Length - Single
 8 - 600 mm
Hydraulic Pump Motor
 2 HP (1.5kW)
 Feeding Length - Multiple 600 - 6000 mm
Blade Speed
 30 - 200 RPM Cutting Length Tolerance
 ±0.15
Blade Size
 250 mm Cutting Vertical Tolerance
 0.1
Blade Feed
 Servo motor & Ball screw
 Floor Space (machine with table) W×L
 2150 x 6980 mm
Material Feed
 Servo motor & Ball screw
 Machine Weight with Table N./W. 2850 kg
