LX-20G2
13" Double Miter Cutting Band Saw
H 330
W 460
- Swivel saw bow to get angle cutting (R/L45˚ R60˚) by manual
- Inverter controls blade speed
- Blade speed readout
- Vise clamping by manual
- Manual lift saw bow up
- Blade tension by manual
- Blade tension gauge
- Blade wheel driven chip brush
- Chip collection drawer
Specifications
| Capacity 90° (H x W) |  330 mm 330 x 460 mm |
Capacity 45°(R/L) (H x W) | 305 mm 330 x 270 mm |
| Capacity 60°(R) (H x W) | 215 mm 315 x 195 mm |
Blade Motor | 3 HP (2.2 kw) x 4P |
| Coolant Pump | 1/6 HP (0.12 kw) | Blade Size | 34 x 1.1 x 4130 mm |
| Blade Speed | 21 ~ 93 mpm | Coolant Tank | 50 L |
| Packing Size | 2270 x 900 x 1670 mm | N.W./G.W. | 814 kg / 920 kg |
Added to your inquiry

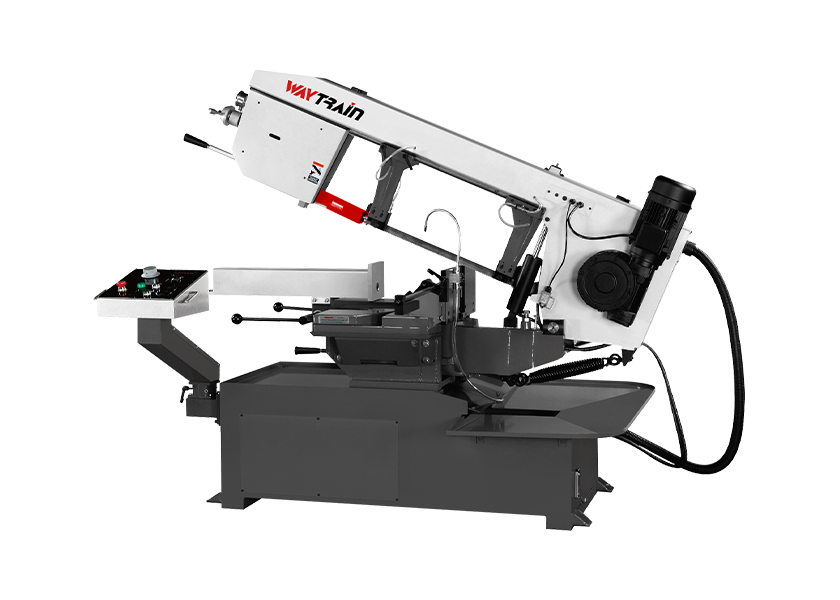

WS-20
