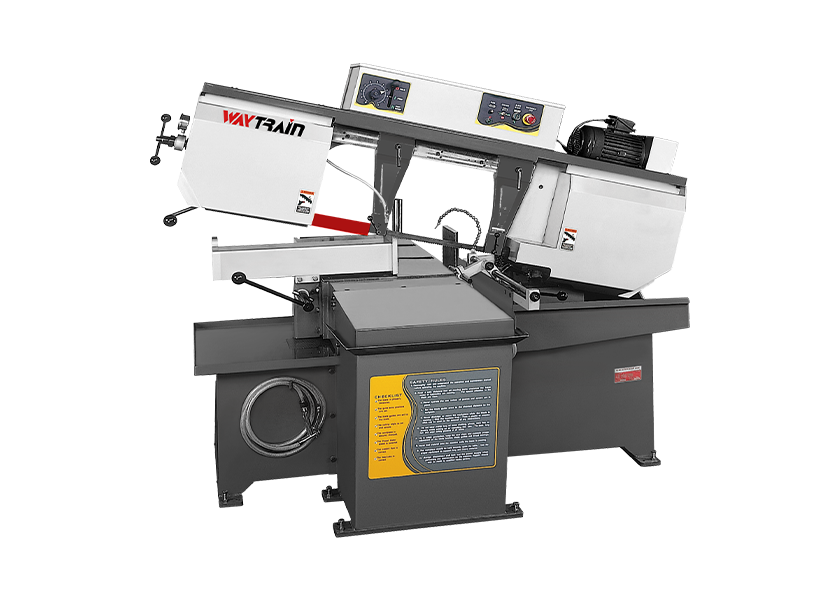

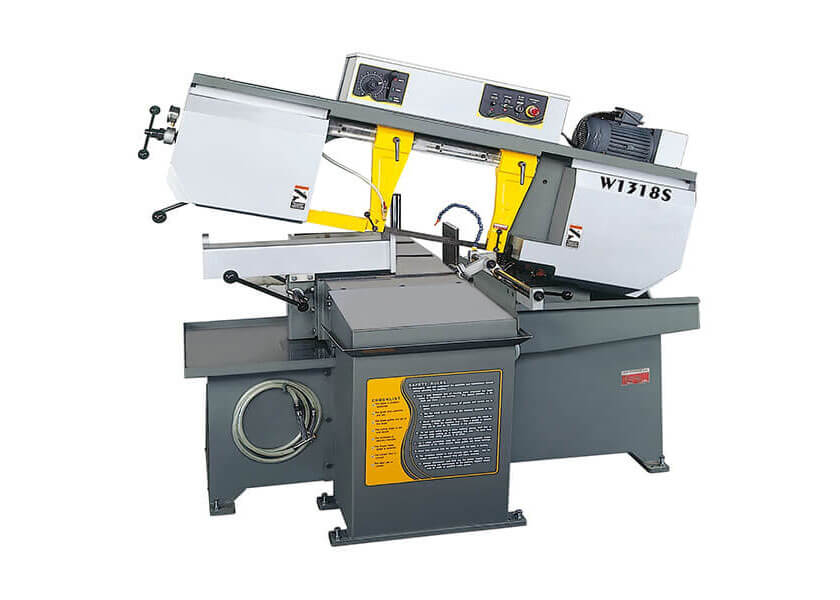

13" Miter Cutting Band Saw

W1318S
13" Miter Cutting Band Saw
13" Miter Cutting Band Saw
H 330 W 450
  • Swivel saw bow to get angle cutting (R60˚) by manual
  • 4 step pulley speed
  • Bow down-feed control valve
  • Quick action vise by manual
  • Blade tension gauge
  • Blade wheel driven chip brush
Specifications
Capacity 90° (H x W) 330 mm
330 x 450 mm		 Capacity 45° (H x W) 280 mm
330 x 280 mm
Capacity 60° (H x W) 160 mm
250 x 160 mm		 Blade Motor  3 HP (2.2 kw) x 4P
Coolant Pump  1/8 HP (0.1 kw) x 2P Blade Size  27 x 0.9 x 4130mm
Blade Speed 28 / 41 / 60 / 78  mpm Coolant Tank 27 L
Packing Size 2110 x 940 x 2270 mm  N.W./G.W.  850 Kg / 992 Kg
Accessories (optional)
LX-20G2
