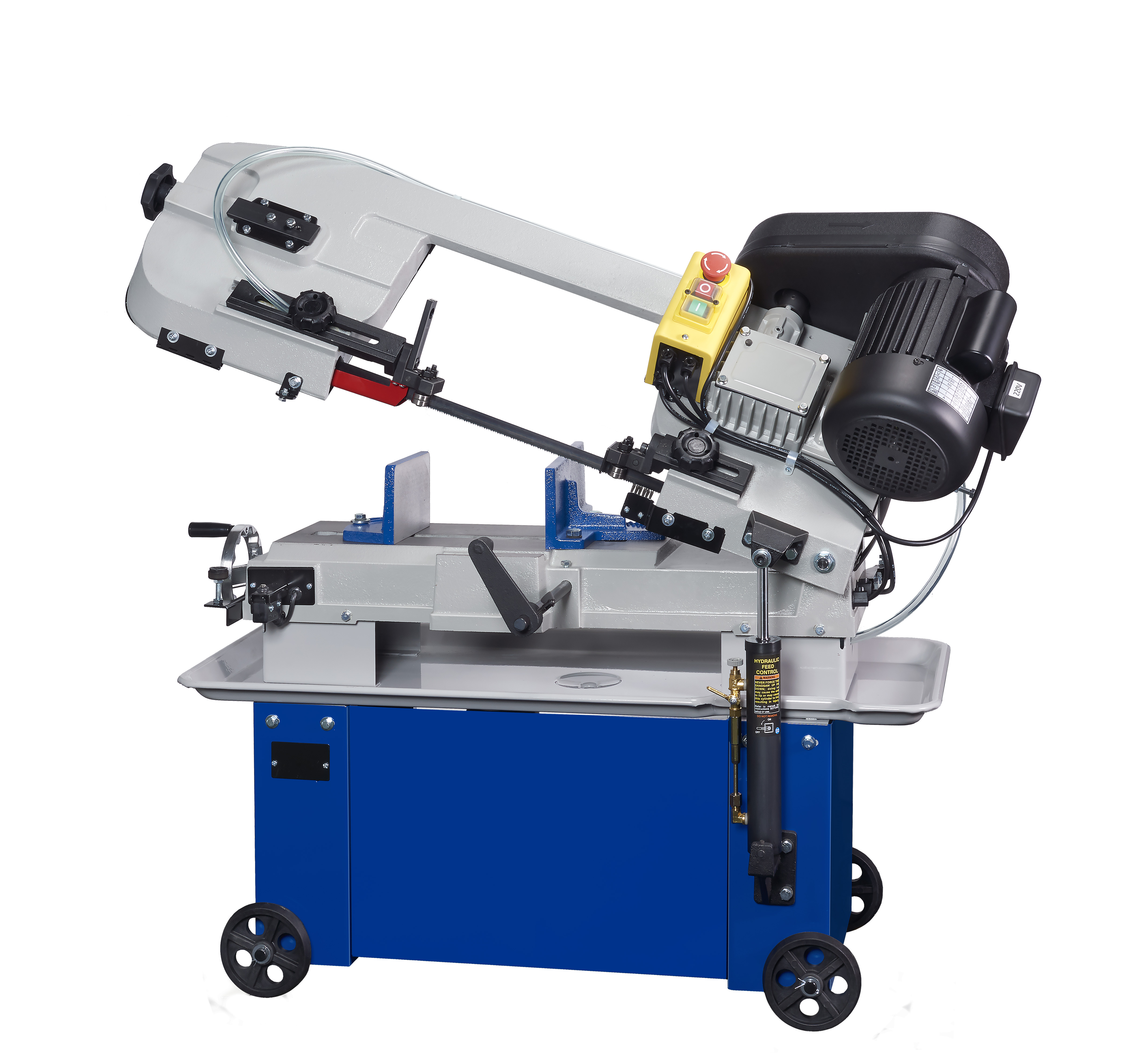

7" Industrial Horizontal Metal Cutting Band Saw

UE-712A
7" Industrial Horizontal Metal Cutting Band Saw
7" Industrial Horizontal Metal Cutting Band Saw
H 180 W 300
  • Angle cutting by swiveling vise
  • 4 step pulley speed
  • Magnetic switch
  • Bow down control by cylinder
  • Equipped with wheels‚the user can move the machine easily to process the cutting job
Specifications
Capacity 90° (H x W) 180 mm
180 x 270 mm
65 x 300 mm		 Capacity 45° (H x W) 110 mm
180 x 85 mm
140 x 110 mm
Motor 1 HP Blade Size 19 x 0.9 x 2360 mm
Blade Speed (4 Speeds) 50 Hz : 22 / 33 / 45 / 65 mpm
60 Hz : 25 / 40 / 55 / 80 mpm 		Container Loads 42 sets/20’
88 sets/40’
Packing Size 1290 x 457 x 1030 mm N.W./G.W. 130 Kg / 150 Kg
Accessories (optional)
UE-9L
