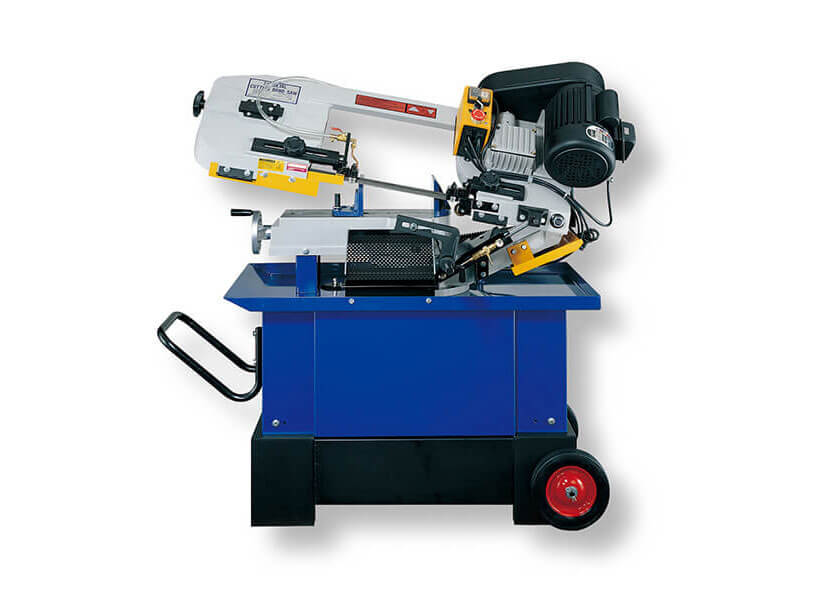

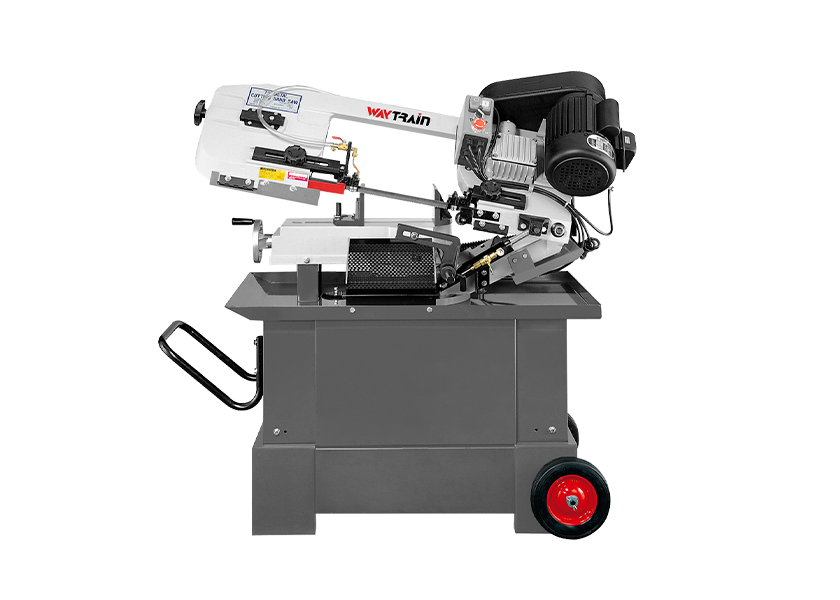

7" Industrial Horizontal Metal Cutting Band Saw

UE-712SB
7" Industrial Horizontal Metal Cutting Band Saw
7" Industrial Horizontal Metal Cutting Band Saw
H 180 W 280
  • Angle cutting by swiveling saw head
  • 4 step pulley speed
  • Bow down control by cylinder
  • Equipped with wheels‚the user can move the machine easily to process the cutting job
Specifications
Capacity 90° (H x W) 180 mm
180 x 250 mm
50 x 280 mm		 Capacity 45° (H x W) 105 mm
120 x 100 mm
Motor 1 HP Blade Size 19 x 0.9 x 2360 mm
Blade Speed (4 Speeds) 50 Hz : 22 / 33 / 45 / 65 mpm
60 Hz : 25 / 40 / 55 / 80 mpm		 Container Loads 34 sets/20’
56 sets/40’
Packing Size 1288 x 572 x 1118 mm N.W./G.W. 180 Kg / 210 Kg
