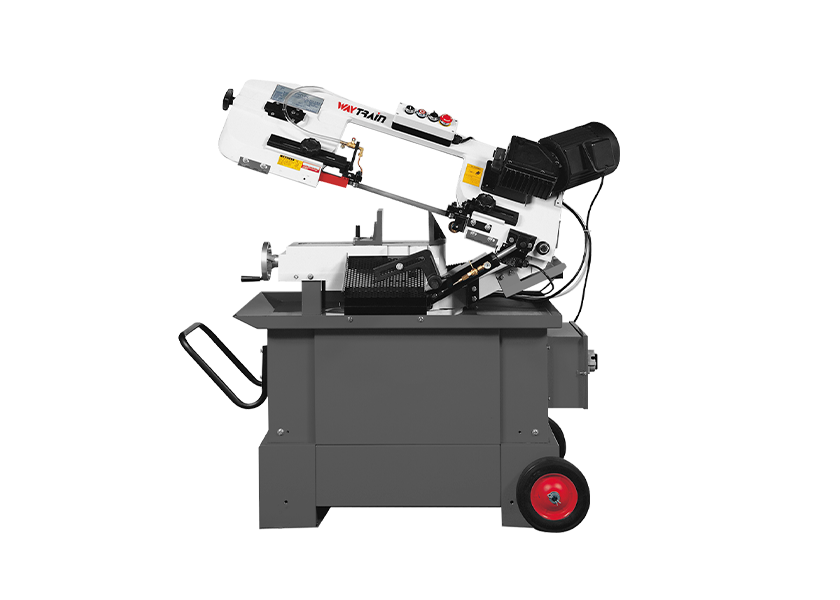

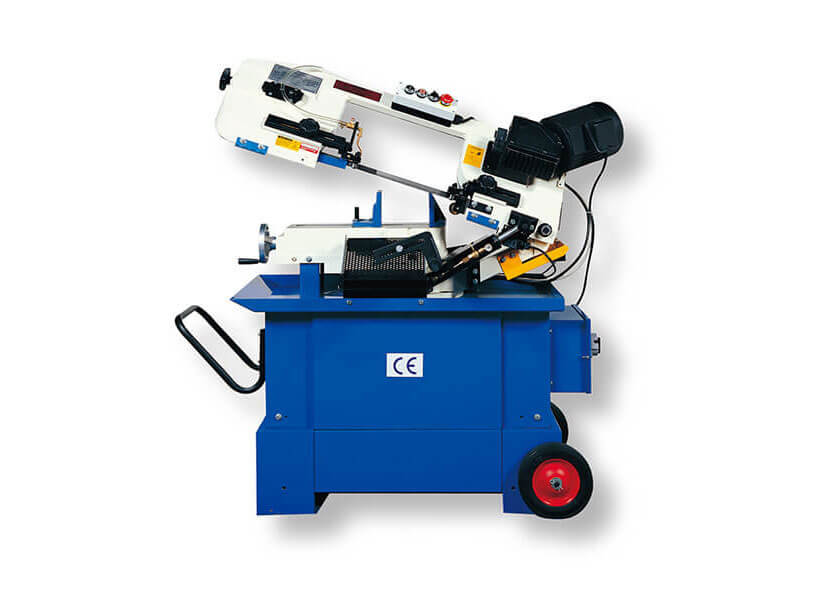

7" Industrial Horizontal Metal Cutting Band Saw : UE-712SG - WAY TRAIN Band Saw Machine

H 180 W 280

Angle cutting by swiveling saw head
Gear transmission
Bow down control by cylinder
Equipped with wheels‚the user can move the machine easily to process the cutting job

Specifications

Capacity 90° (H x W)	180 mm 180 x 250 mm 50 x 280 mm	Capacity 45° (H x W)	105 mm 120 x 100 mm
Motor	1 HP	Blade Size	19 x 0.9 x 2360 mm
Blade Speed (3 Speeds)	39 / 66 / 82 mpm	Container Loads	34 sets/20’ ; 56 sets/40’
Packing Size	1288 x 572 x 1092 mm	N.W./G.W.	180 Kg / 210 Kg

Accessories (optional)
