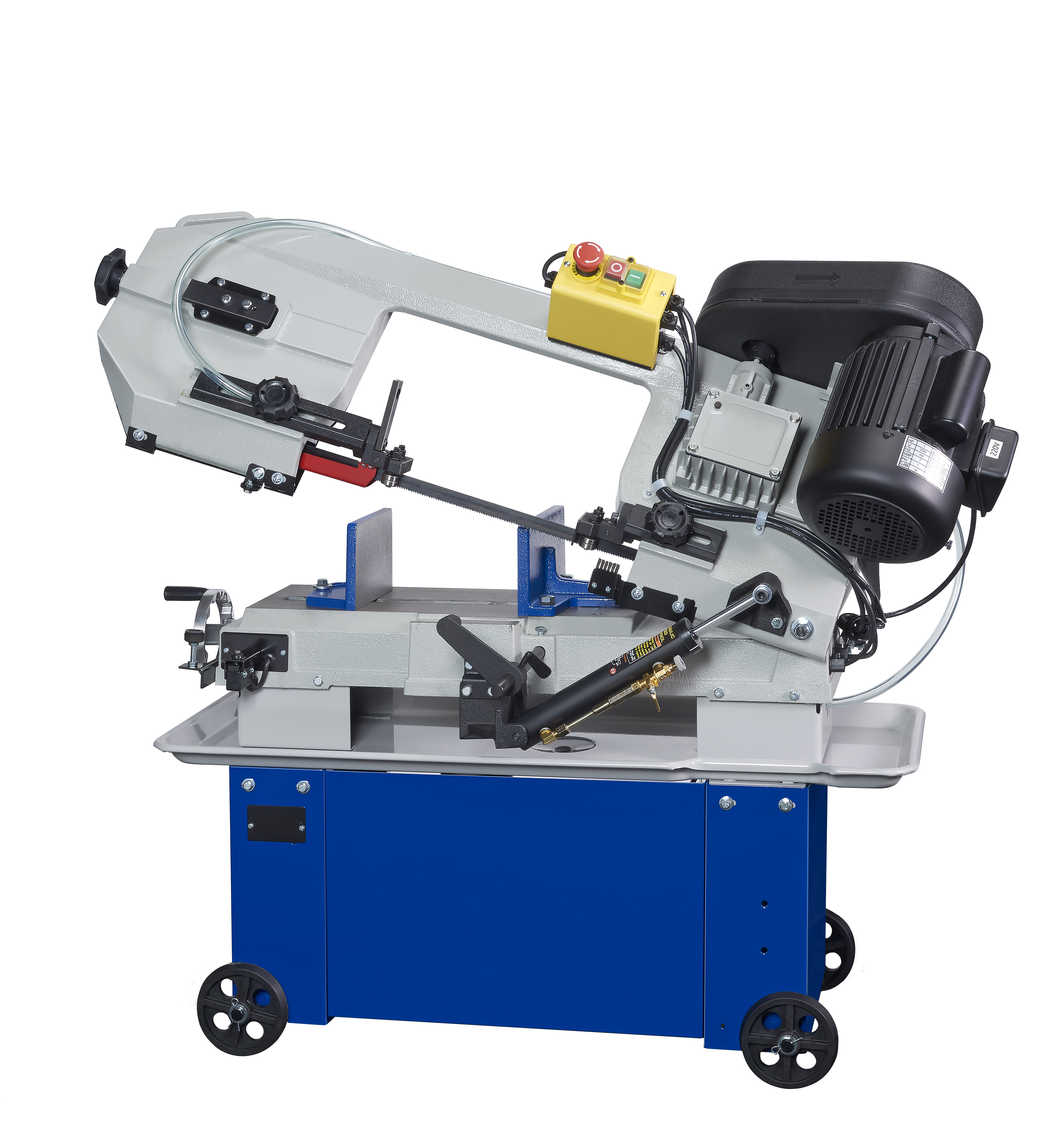

8'' Industrial Horizontal Metal Cutting Band Saw

UE-812
UE-812 8'' Industrial Horizontal Metal Cutting Band Saw
8'' Industrial Horizontal Metal Cutting Band Saw
H 200 W 300
  • Angle cutting by swiveling vise
  • 4 step pulley speed
  • Bow down control by cylinder
  • Magnetic switch
  • Equipped with wheels‚the user can move the machine easily to process the cutting job
Specifications
Capacity 90° (H x W) 200 mm
200 x 265 mm
55 x 300 mm		 Capacity 45° (H x W) 120 mm
200 x 100 mm
Motor 1 HP Blade Size 19 x 0.9 x 2360 mm
Blade Speed (4 Speeds) 50 Hz : 22 / 33 / 45 / 65 mpm
60 Hz : 25 / 40 / 55 / 80 mpm		 Container Loads 36 sets / 20'
Packing Size 1295 x 483 x 1093 mm N.W./G.W. 140 kg / 165 kg
Accessories (optional)
UE-9L
