WE-33T1

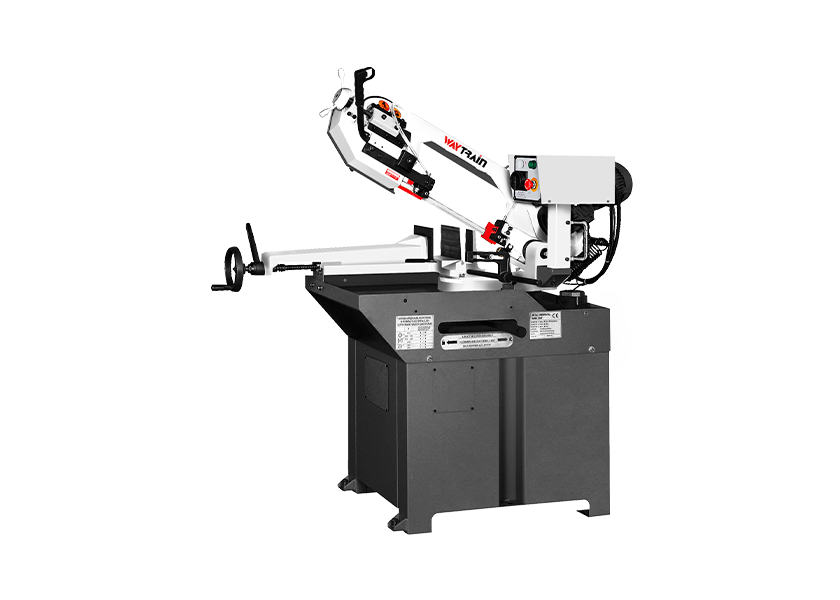

9" European Manual Band Saw
/WE-260S-SH-SHV.jpg)
H 215 W 240
- Swivel saw bow to get angle cutting (R60˚)
- Two Blade speeds selection for optimal adjustment to the workpiece (SH)
- Inverter controls variable blade speed for accuracy cutting speed(SHV)
- Manual vise clamping with quick adjustment
- Good for cutting of profiles, pipes, solid iron and non-iron materials
- Strong rigidity design of cast iron saw frame for cutting smooth and vibration-free running
- Down-feed of saw frame by hydraulic cylinder
- Adjustable tension keeps the suitable tension for extending the blade life and cutting efficiency
- Tungsten steel carbide blade guide provides stable hold on the blade
- Blade guide post is used on smooth movement and improve the abrasion resistance
- Adjustable screws for blade wheel runout
Specifications
| Capacity 90° (H x W) |  220 mm 215 mm 110 x 260 mm |
Capacity 45° (H x W) | 150 mm 145 mm 110 x 115 mm |
| Capacity 60° (H x W) | 90 mm 85 mm 80 x 95 mm |
Blade Size | 27 x 0.9 x 2460 mm |
| Blade Speed 2 Speeds | 50HZ 4P 72 m/min;8P 36 m/min | Blade Speed Inverter | 20 ~ 85 mpm |
| Blade Motor | 1.5 HP (1.1 kw) | Coolant Motor | 32 W |
| Container Loads | 22 units / 20';46 units / 40' | Packing Size | 1530 x 780 x 1090 mm |
| N.W./G.W. | 216 kg / 250 kg |
