WE-33T1

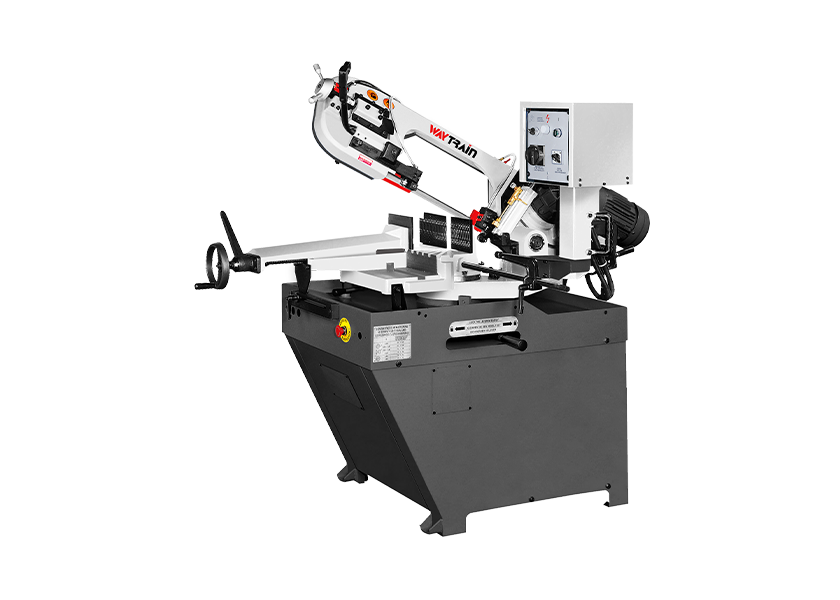

9" European Manual Band Saw
/WE-270DS.jpg)
H 220 W 260
- Swivel saw bow to get angle cutting (R/L45˚ R60˚)
- Two Blade speeds selection (DS)
- Inverter controls variable blade speed (DSV)
- Manual vise clamping
- Blade broken detection
- Blade tension gauge
Specifications
| Capacity 90° (H x W) |
 220 mm 215 mm 105 x 260 mm |
Capacity 45° (H x W) |
70 mm 145 mm 70 x 155 mm |
||
| Capacity 60° (H x W) |
90 mm 85 mm 85 x 90 mm |
Capacity 45° (L)(H x W) |
135 mm 110 mm 45 x 160 mm |
||
| Blade Size | 27 x 0.9 x 2725 mm | Blade Speed 2 Speeds | 50HZ 4P 72 m/min;8P 36 m/min | ||
| Blade Motor | 1.5 HP (1.1 kw) | Blade Speed Inverter |
20 ~ 85 mpm |
||
| Container Loads | 22 units / 20';46 units / 40' | Coolant Motor |
50 W | ||
| N.W./G.W. | 280 kg / 330 kg | Packing Size | 1550 x 750 x 1055 mm |
||
