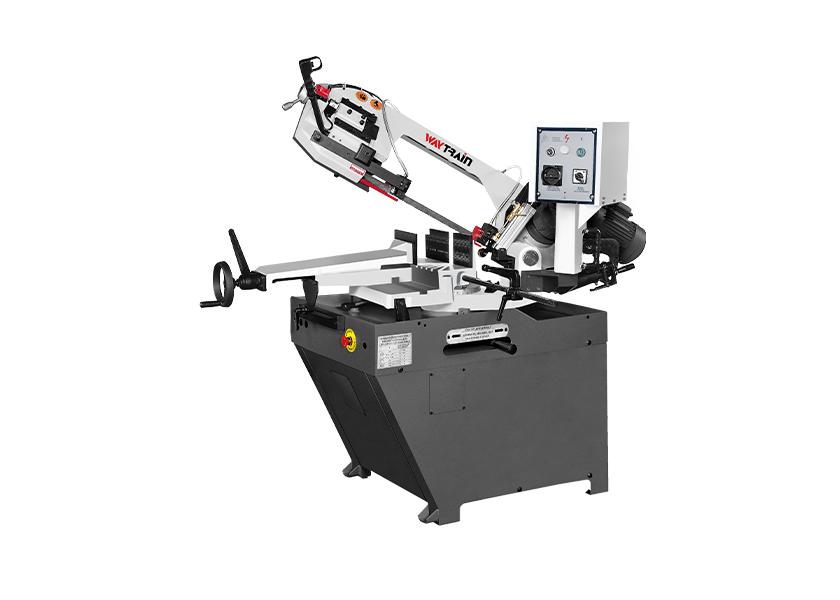

WE-310DS/DSV 9" European Manual Band Saw - Power Through Your Projects with Way Train

H 240 W 310

Swivel saw bow to get angle cutting (R/L45˚ R60˚)
Two Blade speeds selection (DS)
Inverter controls variable blade speed (DSV)
Manual vise clamping
Blade broken detection
Blade tension gauge

Specifications

Capacity 90° (H x W)	240 mm 235 mm 165 x 310 mm	Capacity 45° (H x W)	195 mm 185 mm 130 x 195 mm
Capacity 60° (H x W)	120 mm 85 mm 90 x 120 mm	Capacity 45°(L) (H x W)	165 mm 140 mm 60 x 195 mm
Blade Size	27 x 0.9 x 2725 mm	Blade Speed 2 Speeds	50HZ 4P 72 m/min;8P 36 m/min
Blade Motor	1.5 HP (1.1 kw)	Blade Speed Inverter	20 ~ 85 mpm
Container Loads	20 units / 20';40 units / 40'	Coolant Motor	50 W
N.W./G.W.	310 kg / 360 kg	Packing Size	1670 x 750 x 1640 mm

Accessories (optional)
