WE-33T1

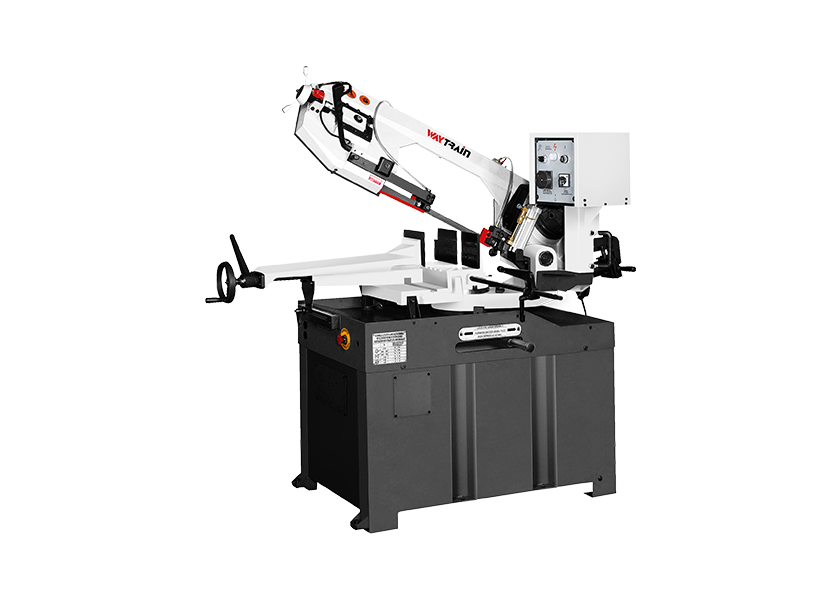

10" European Manual Band Saw
/WE-350DS.jpg)
H 260
W 350
- Swivel saw bow to get angle cutting (R/L45˚ R60˚)
- Two Blade speeds selection (DS)
- Inverter controls variable blade speed (DSV)
- The dovetail working table is smooth movement for sliding vise base
- The linear bearing is used in the sliding vise base for operational method and achieve high precision positioning
- Manual vise clamping
- Blade broken detection
- Blade tension gauge
Specifications
| Capacity 90° (H x W) |  260 mm 260 mm 250 x 350 mm |
Capacity 45° (H x W) | 230 mm 165 mm 110 x 240 mm |
||
| Capacity 60° (H x W) | 150 mm 90 mm 90 x 150 mm |
Capacity 45°(L) (H x W) | 200 mm 170 mm 60 x 260 mm |
||
| Blade Size | 27 x 0.9 x 3160 mm | Blade Speed2 Speeds | 50HZ 4P 72 m/min;8P 36 m/min | ||
| Blade SpeedInverter | 20 ~ 85 mpm | Blade Motor | 2 HP (1.5 kw) | ||
| Coolant Motor | 50 W | Container Loads | 18 units / 20';36 units / 40' | ||
| Packing Size | 1735 x 750 x 1111 mm | N.W./G.W. | 360 kg / 410 kg | ||
