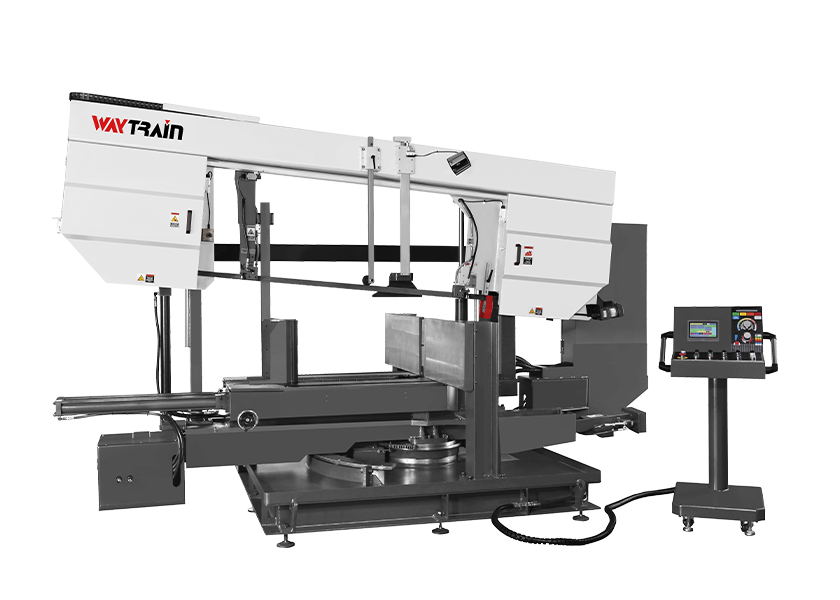

22" Double Miter Cutting Band Saw - Semi-Auto

RL-560DSA
22" Double Miter Cutting Band Saw
22" Double Miter Cutting Band Saw - Semi-Auto
H 560 W 950
  • Set angle cutting (R/L45˚ L60˚) on screen and auto-swiveling
  • Swiveling drive by servo motor and brake position by hydraulic rake
  • Blade tilt 6.5 ˚ for section steel or steel plate easy cutting
  • Inverter controls blade speed
  • Notifications of malfunction diagnosing on screen
  • Blade guide arm auto-moving
  • Cutting start noise abatement device
  • Hydraulic carbide guides device
  • Quickly down material feeler
  • Hydraulic blade tension
  • Motor driven chip brush
  • Vise pressure regulator(Option)
  • Hydraulic vertical press vise(Option)
Specifications
Capacity 90° (H x W) 560 mm
560 x 950 mm		 Capacity 45°(R/L) (H x W) 560 mm
560 x 600 mm
Capacity 60°(L) (H x W) 560 mm
560 x 400 mm		 Blade Motor 7.5 HP (5.7kw)
Hydraulic Motor 2 HP (1.5kw) Coolant Pump 1/4 HP (0.19kw)
Blade Size 41 x 1.3 x 7880 mm Blade Speed　 30 ~ 110 mpm
Hydraulic Tank 75 L  Coolant Tank　 155 L
Packing Size　 4250 x 2100 x 2100 mm  N.W/G.W 4500 kg
Table Height 830 mm
