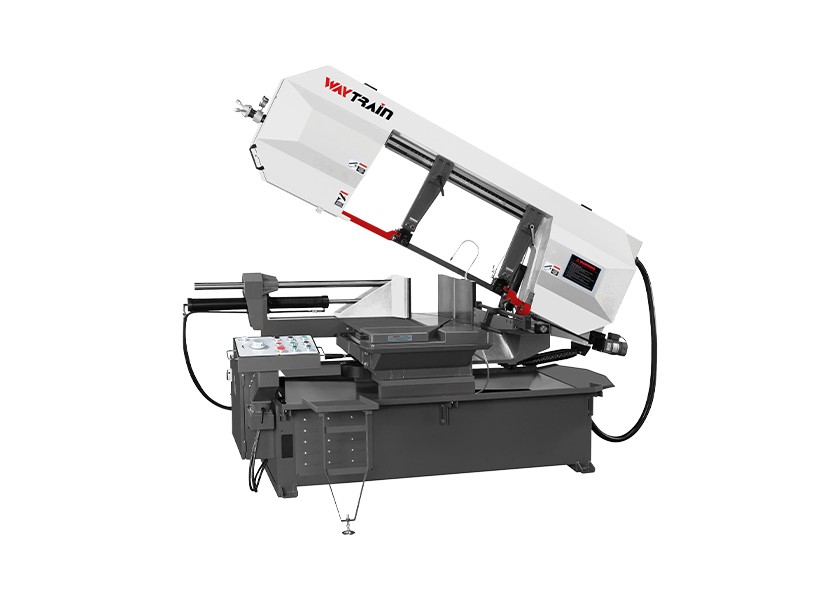

18" Double Miter Cutting Band Saw : UE-460DSAE | WAY TRAIN Bandsaw Manufacturer

H 460 W 600

Swivel saw bow to get angle cutting (R/L 60˚) by manual
Variable speeds by manual
Blade speed readout
Set bow height by manual
Blade tension gauge
Blade wheel driven chip brush
Swiveling control box
Angle readout(Option)
Vertical press vise(Option)
Vise pressure regulator(Option)
Hydraulic blade tension(Option)
Laser cutting line devise(Option)

Specifications

Capacity 90° (H x W)	460 mm 460 x 460 mm 440 x 600 mm	Capacity 45°(R/L) (H x W)	445 mm 410 x 410 mm
Capacity 60°(R/L) (H x W)	295 mm 295 x 295 mm	Blade Motor	5 HP (3.7kw) x 4P
Blade Size	41 x 1.3 x 5330 mm	Blade Speed	32 ~ 96 mpm
Hydraulic Tank	30 L	Coolant Tank	60 L
Packing Size	2810 x 1135 x 1860 mm	N.W/G.W	1500 kg / 1630kg

Accessories (optional)
