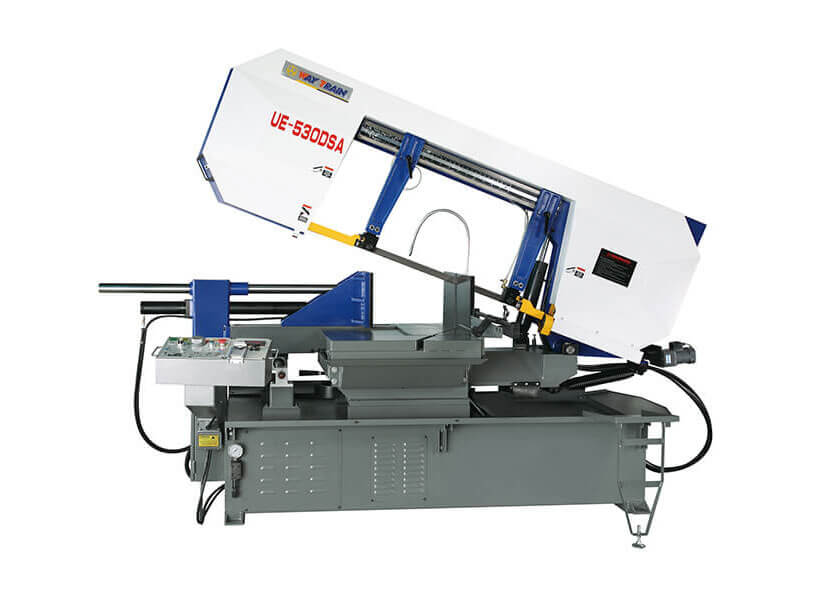

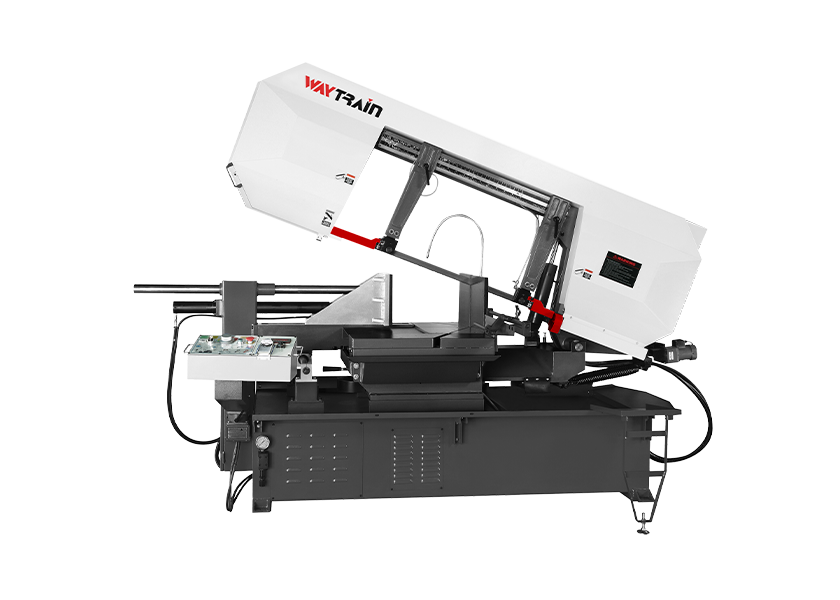

20" Double Miter Cutting Band Saw - Semi-Auto

UE-530DSA
20" Double Miter Cutting Band Saw
20" Double Miter Cutting Band Saw - Semi-Auto
H 530 W 700
  • Swivel saw bow to get angle cutting (R/L 60˚) by manual
  • Inverter controls blade speed
  • Blade speed readout
  • Set bow height on control panel
  • Abnormal warning lights on control panel
  • Blade tension gauge
  • Motor driven chip brush
  • Swiveling control box
  • Angle readout(Option)
  • Vertical press vise(Option)
  • Hydraulic blade tension(Option)
  • Laser cutting line devise(Option)
Specifications
Capacity 90° (H x W) 530 mm
530 x 530 mm
335 x 700 mm		 Capacity 45°(R/L) (H x W) 490 mm
435 x 435 mm
300 x 500 mm
Capacity 60°(R/L) (H x W) 335 mm
320 x 320 mm
305 x 400 mm		 Blade Motor 7.5 HP (5.6kw) x 4P
Hydraulic Motor 1 HP (0.75kw) Coolant Pump 1/6 HP (0.12kw)　　
Blade Size 41 x 1.3 x 6030 mm  Blade Speed　 20 ~ 85  mpm
Hydraulic Tank 38 L  Coolant Tank　 90 L
Packing Size　 3060 x 1135 x 2010  mm  N.W/G.W 1880 kg / 2048 kg
Table Height 920 mm
Accessories (optional)
Single Gauge for UE series
