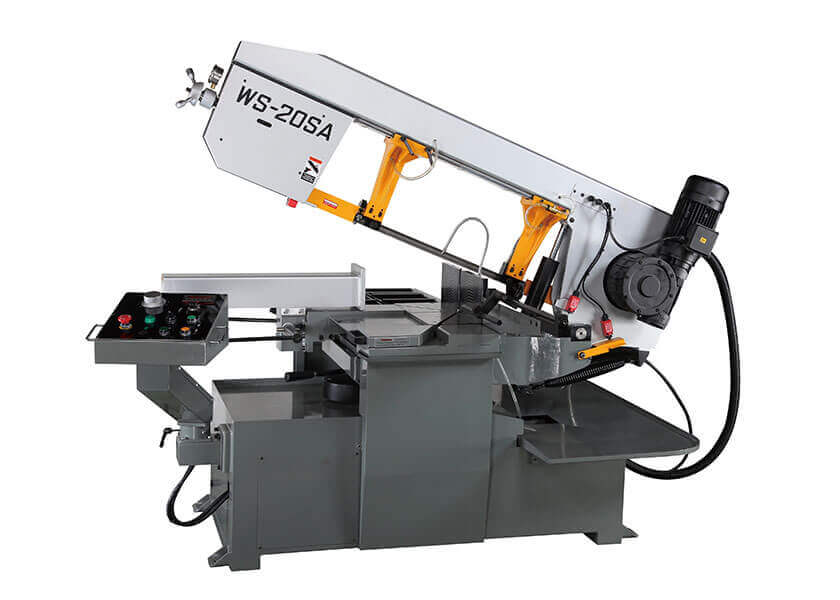

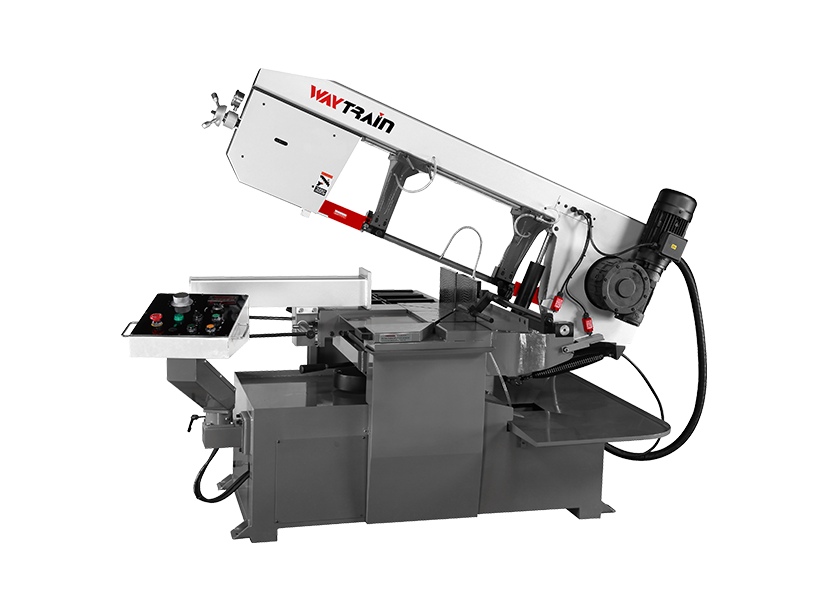

13" Double Miter Cutting Band Saw

WS-20SA
13" Double Miter Cutting Band Saw
13" Double Miter Cutting Band Saw
H 330 W 460
  • Swivel saw bow to get angle cutting (R/L45˚ R60˚) by manual
  • Vise clamping by manual
  • Inverter controls blade speed
  • Blade speed readout
  • Blade tension gauge
  • Blade wheel driven chip brush
  • Chip collection drawer
Specifications
Capacity 90° (H x W) 330 mm
330 x 460 mm		 Capacity 45°(R/L) (H x W) 305 mm
270 x 330 mm
Capacity 60°(R/L) (H x W) 215 mm
195 x 315 mm		 Blade Motor 3 HP (2.2kw) x 4P
Coolant Pump 1/6 HP (0.12kw) Blade Size 34 x 1.1 x 4130 mm
Blade Speed 21 ~ 93 mpm Hydraulic Tank 23 L
Coolant Tank 50 L Packing Size 2270 x 900 x 1670 mm
N.W/G.W 834 kg / 940 kg
Accessories (optional)
LX-20G2
