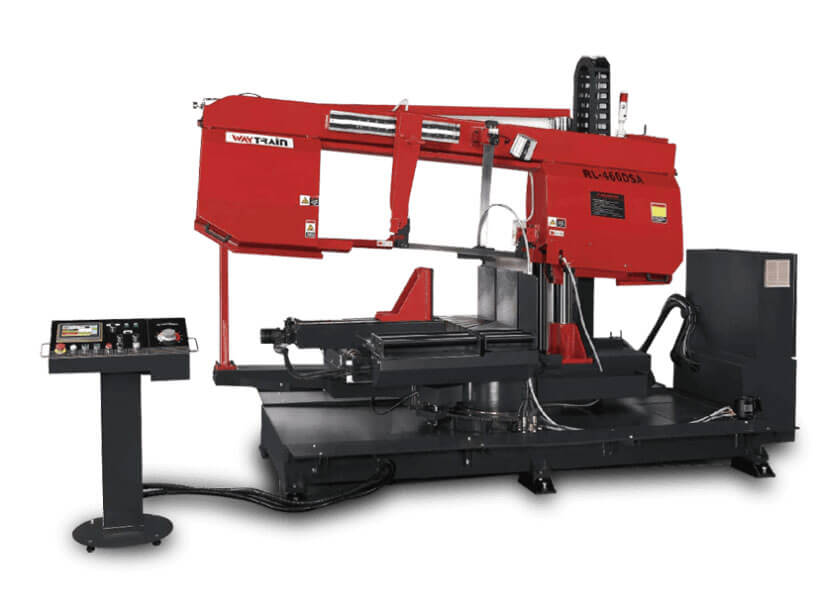

18" Double Miter Cutting Band Saw - Semi-Auto
H 460
W 820
- Set angle cutting (R/L45˚ L60˚) on screen
- Vise seat auto-movement for the angle cutting
- Motor inverter control blade speed
- Blade tilt 5 ˚ for section steel or steel plate easy cutting
- Hydraulic blade tension
- Quickly down material feeler
- Vise pressure regulator(Option)
- Hydraulic vertical press vise(Option)
Specifications
| Capacity 90° (H x W) |
 460 mm 460 x 460 mm 420 x 820 mm |
Capacity 45°(R/L) (H x W) |
460 mm 420 x 420 mm 420 x 550 mm |
| Capacity 60°(R/L) (H x W) |
350 mm 330 x 330 mm 280 x 460 mm |
Blade Motor | 7.5 HP |
| Hydraulic Pump | 2 HP (1.5kw) | Coolant Motor | 1/6 HP (0.12kw) |
| Blade Size | 41 x 1.3 x 6185 mm | Blade Speed | 30 ~ 85 mpm |
| Hydraulic Tank | 38 L | Coolant Tank | 121 L |
| Packing Size | 3610 x 1690 x 2150 mm | N.W./G.W. | 2100 kg |
| Table Height | 760 mm |
