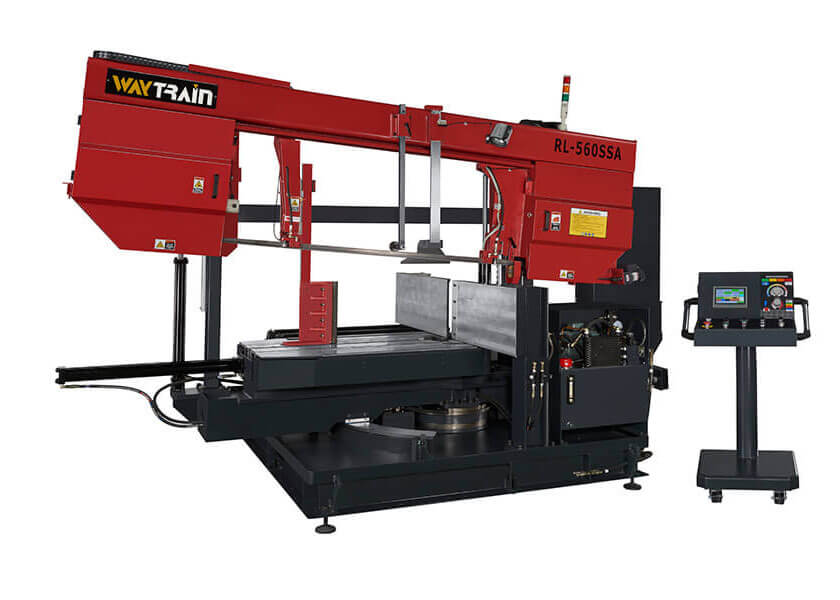

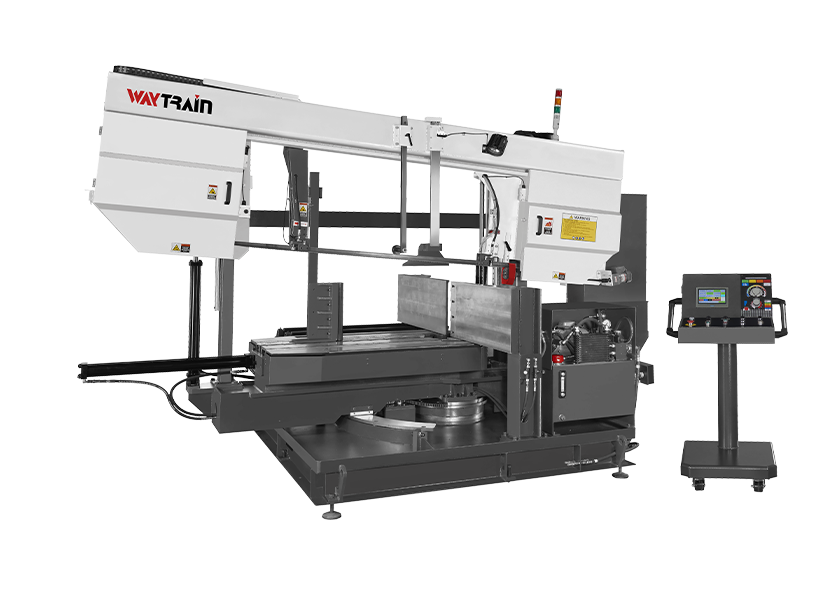

22" Miter Cutting Band Saw - Semi-Auto

RL-560SSA
22" Miter Cutting Band Saw
22" Miter Cutting Band Saw - Semi-Auto
H 560 W 950
  • Set angle cutting on screen and auto-swiveling
  • Swiveling drive by servo motor and brake position by hydraulic rake
  • Blade tilt 6.5 ˚ for section steel or steel plate easy cutting
  • Inverter controls blade speed
  • Notifications of malfunction diagnosing on screen
  • Blade guide arm auto-moving
  • Cutting start noise abatement device
  • Hydraulic carbide guides device
  • Quickly down material feeler
  • Hydraulic blade tension
  • Motor driven chip brush
  • Vise pressure regulator(Option)
Specifications
Capacity 90° (H x W) 560 mm
560 x 950 mm		 Capacity 45°(R) (H x W) 560 mm
560 x 600 mm
Blade Motor 7.5 HP (5.62 KW) Hydraulic Motor 2 HP (1.5 KW)
Chip Brush Motor 60 W Coolant Pump 1/4 HP (0.19 KW)
Blade Size 41 X 1.3 X 7880 mm Blade Speed　 30~110 mpm
Hydraulic Tank 60 L Coolant Tank　 155 L
Packing Size　 830 mm N.W/G.W 4250 X 2100 X 2100 mm
Table Height 3950 Kg
