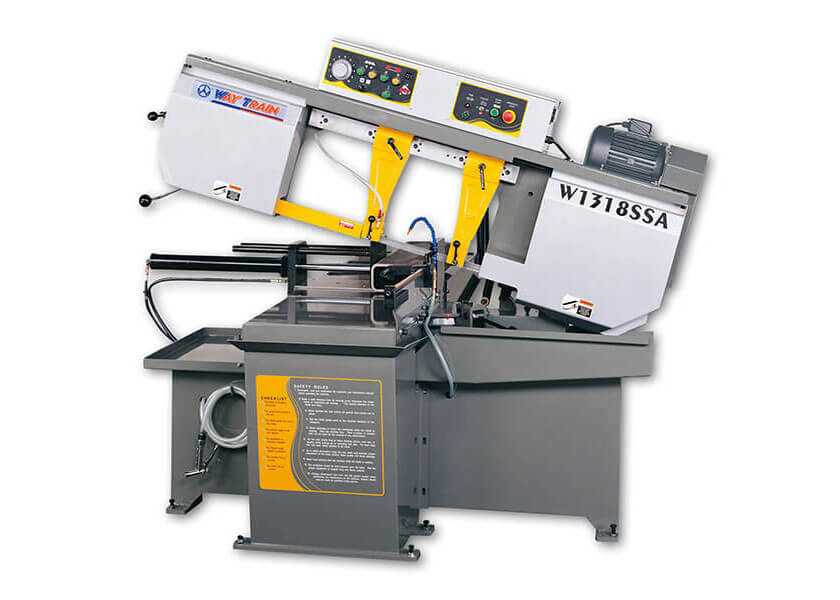

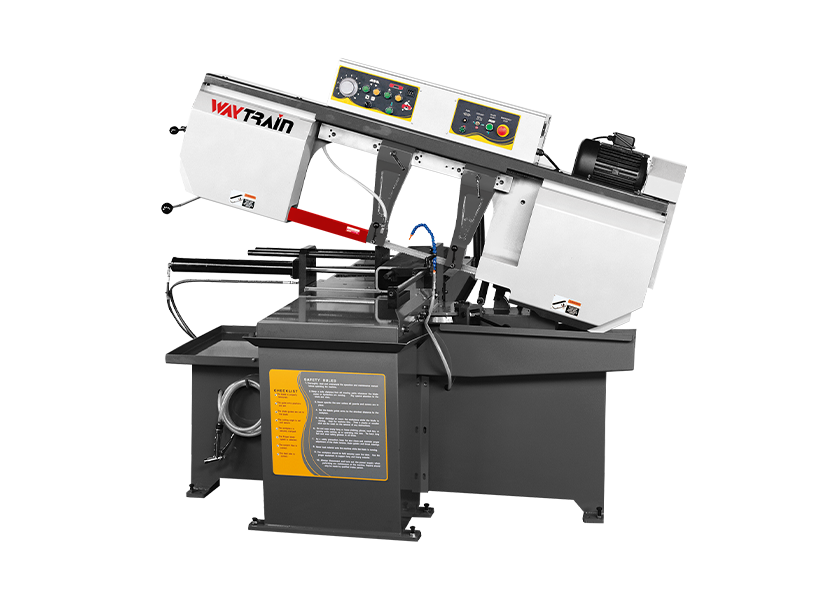

LX-20G2
13" Miter Cutting Band Saw
/W1318SSA.jpg)
H 330
W 450
- Swivel saw bow to get angle cutting (R60˚) by manual
- 4 step pulley speed(SSA)
- Variable speed by manual(SSAV)

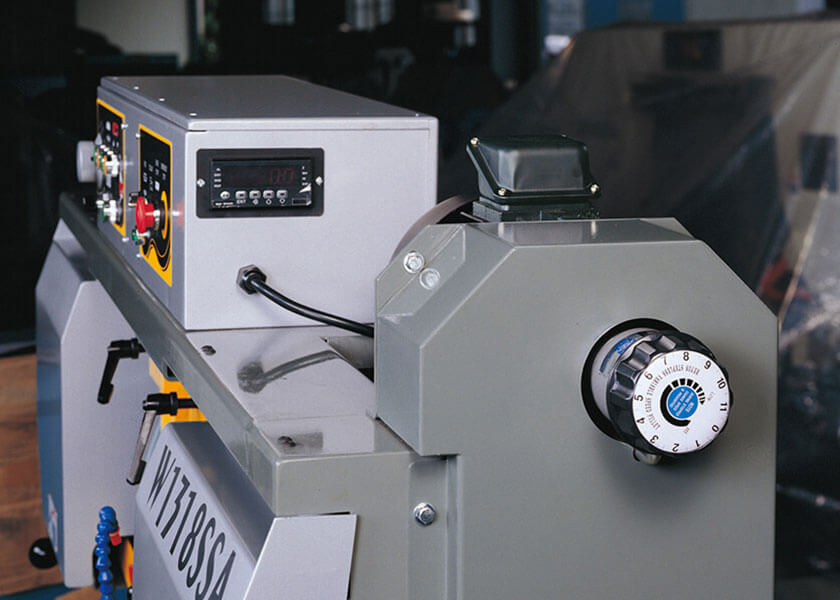

- Blade speed readout(SSAV)
- Bow down-feed control valve
- Hydraulic vise clamping
- Blade wheel driven chip brush
- Blade tension gauge
Specifications
| Capacity 90° (H x W) |  330 mm 330 x 450 mm |
Capacity R45° (H x W) | 280 mm 330 x 280 mm |
| Capacity R60° (H x W) | 160 mm 250 x 160 mm |
Blade Motor | 3 HP (2.2 kw) x 4P |
| Coolant Pump | 1/8 HP (0.1 kw) | Hydraulic Motor | 1 / 2 HP (0.38kw) |
| Blade Size | 27 x 0.9 x 4130 mm | Blade Speed | 28 / 42 / 60 /78 (SSA) 27 ~ 78 mpm (SSAV) |
| Coolant Tank | 20 L | Hydraulic Tank | 27 L |
| Packing Size | 2240 x 940 x 2270 mm | N.W./G.W. | 890 Kg / 1030 Kg (SSA) 993 Kg / 1140 Kg (SSAV) |
