WE-33T1

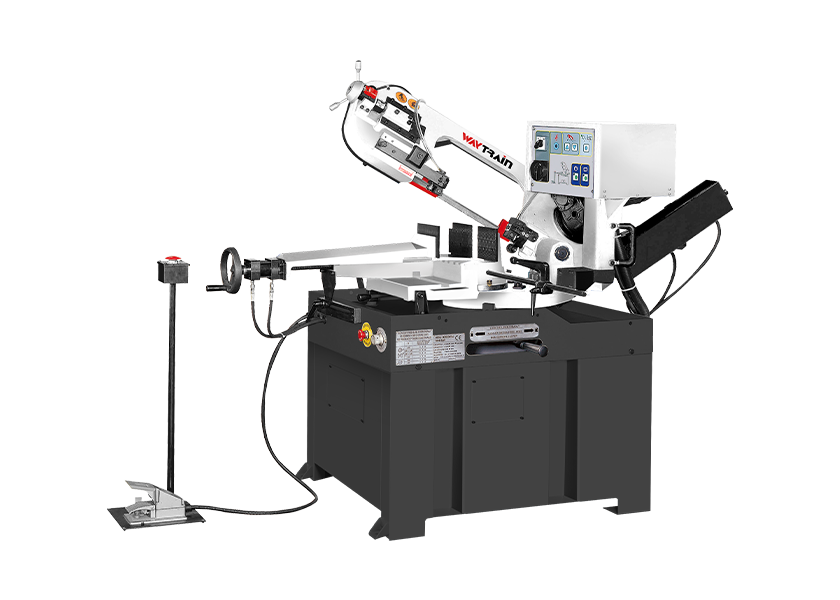

8'' Semi-Auto European Band Saw
/WE-270DSA.jpg)
H 220 W 260
- Swivel saw bow to get angle cutting (R/L45˚ R60˚)
- Two Blade speeds selection (DSA)
- Inverter controls variable blade speed (DSAV)
- Hydraulic cylinder controls lift of saw baw
- Hydraulic vise clamping
- Blade broken detection
- Blade tension gauge
Specifications
| Capacity 90° (H x W) |
 220 mm 215 mm 105 x 260 mm |
Capacity 45° (H x W) |
150 mm 145 mm 70 x 155 mm |
| Capacity 60° (H x W) |
90 mm 85 mm 85 x 90 mm |
Capacity 45°(L) (H x W) |
135 mm 110 mm 45 x 160 mm |
| Blade Size | 27 x 0.9 x 2460 mm | Blade Speed 2 Speeds | 50HZ 4P 72 m/min ;8P 36 m/min |
| Blade Speed Inverter | 20 ~ 85 mpm | Blade Motor | 1.5 HP (1.1 kw) |
| Hydraulic Motor | 1 / 2 HP (0.38kw) | Coolant Motor | 50 W |
| Container Loads | 10 units / 20';20 units / 40' | Packing Size | 1580 x 740 x 1580 mm |
| N.W./G.W. | 380 kg / 450 kg |
