WE-33T1

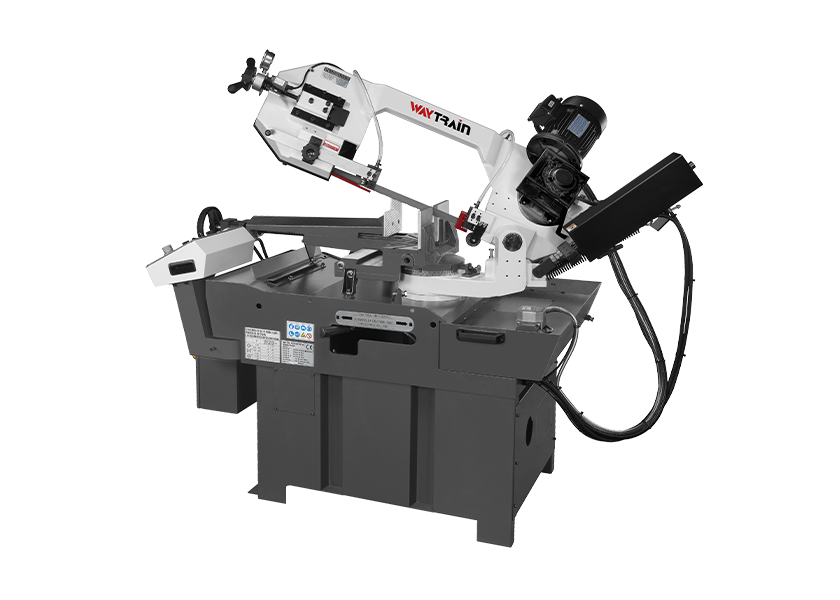

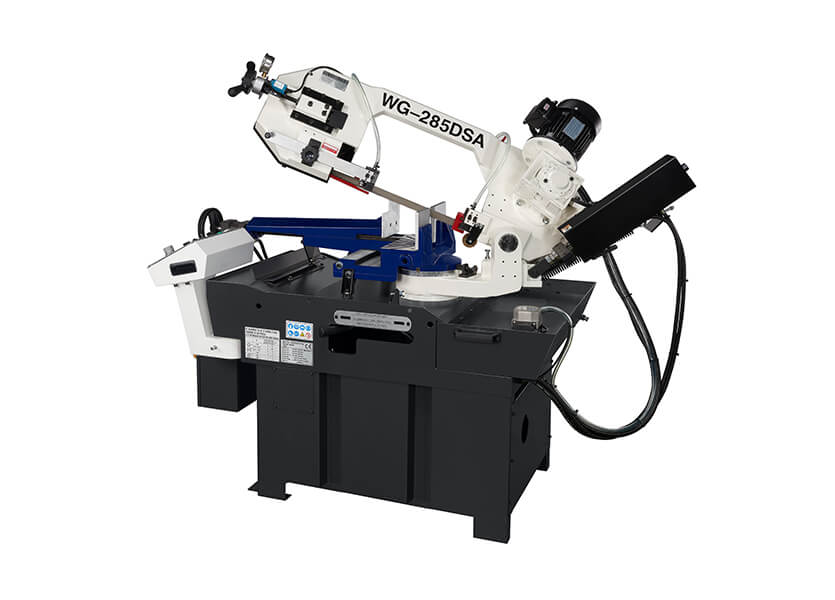

11'' Semi-Auto European Band Saw
/WG-285DSA.jpg)
H 250 W 285
- Swivel saw bow to get angle cutting (R60˚ L45˚)
- Two Blade speeds selection (DSA)
- Inverter controls variable blade speed (DSAV)
- The dovetail working table is smooth movement for sliding vise base
- Hydraulic vise clamping
- Mobile coolant tray is convenient for catchment during the angle cutting
- Blade broken detection
- Blade tension gauge
Specifications
| Capacity 90° (H x W) |  250 mm 250 mm 240 x 285 mm |
Capacity 45° (H x W) | 190 mm 180 mm 140 x 190 mm |
| Capacity 60° (H x W) | 120 mm 100 mm 100 x 120 mm |
Capacity 45°(L) (H x W) | 180 mm 150 mm 50 x 200 mm |
| Blade Size | 27 x 0.9 x 2685 mm | Blade Speed 2 Speeds (DSA) | 50HZ 4P 72 m/min ; 8P 36 m/min |
| Blade Speed Inverter (DSAV) | 20 ~ 85 mpm | Blade Motor | 1.5 HP (1.1 kw) |
| Hydraulic Motor | 1 / 2 HP (0.38kw) | Coolant Motor | 32 W |
| Container Loads | 9 units / 20';18 units / 40' | Packing Size | 1835 x 762 x 1650 mm |
| N.W./G.W. | 396 kg / 445 kg |
