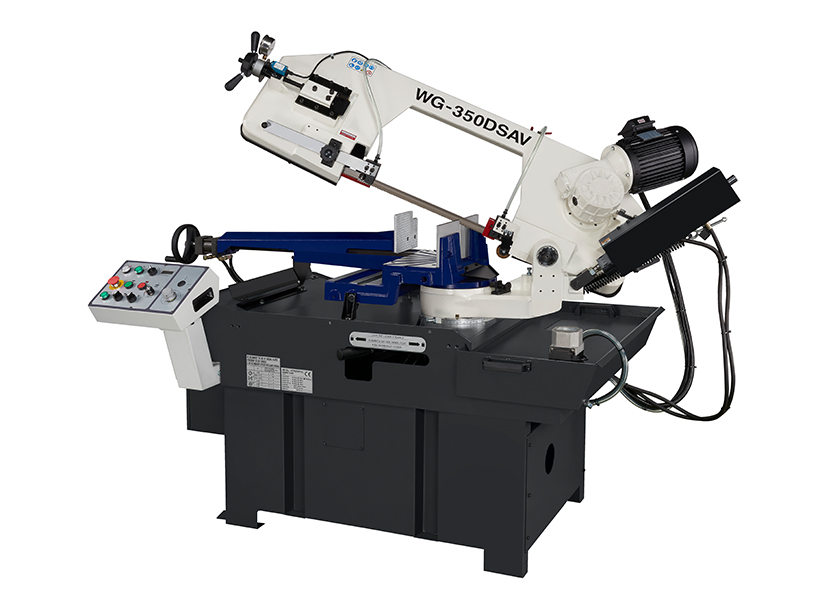

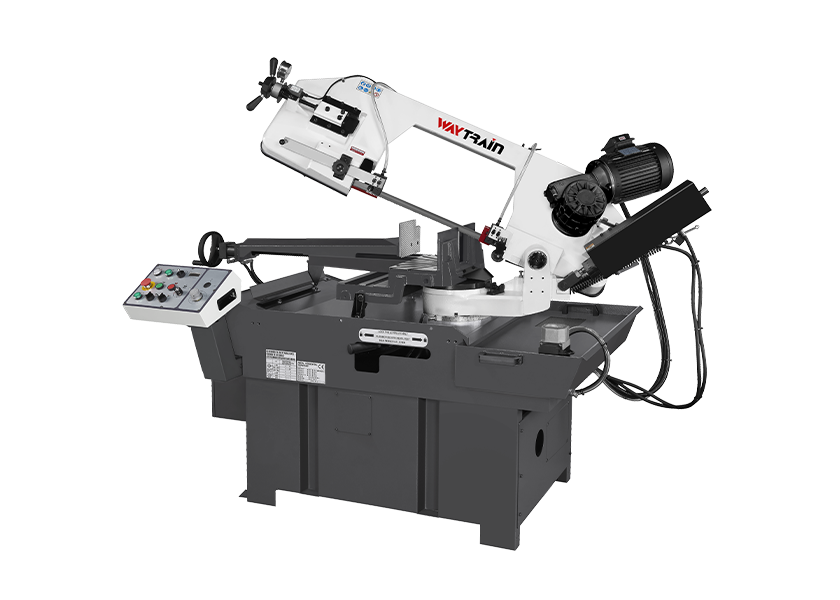

13'' Semi-Auto European Band Saw

WG-350DSA/DSAV
13'' Semi-Auto European Band Saw
13'' Semi-Auto European Band Saw
H 270 W 350
  • Swivel saw bow to get angle cutting (R60˚ L45˚)
  • Two Blade speeds selection (DSA)
  • Inverter controls variable blade speed (DSAV)
  • HMI control panel build-in error conditions with display on screen (DSAV)
  • The dovetail working table is smooth movement for sliding vise base
  • The linear bearing is used in the sliding vise base for operational method and achieve high precision positioning
  • Hydraulic vise clamping
  • Mobile coolant tray is convenient for catchment during the angle cutting
  • Blade broken detection
  • Blade tension gauge
Specifications
Capacity 90° (H x W) 270 mm
270 mm
260 x 350 mm		 Capacity 45° (H x W) 230 mm
180 mm
95 x 240 mm
Capacity 60° (H x W) 135 mm
90 mm
90 x 135 mm		 Capacity 45° (L)(H x W) 210 mm
170 mm
70 x 245 mm
Blade Size  27 x 0.9 x 3160 mm Blade Speed 2 Speeds (DSA) 50HZ 4P  72 m/min ;8P  36 m/min
Blade Speed Inverter  (DSAV) 20 ~ 85 mpm Blade Motor  2 HP (1.5 kw)
Hydraulic Motor 1 / 2  HP (0.38kw) Coolant Motor 50 W
Container Loads 7 units / 20';14 units / 40' Packing Size 2045 x 815 x 1690 mm
N.W./G.W.  509 kg / 560 kg
