WE-33T1

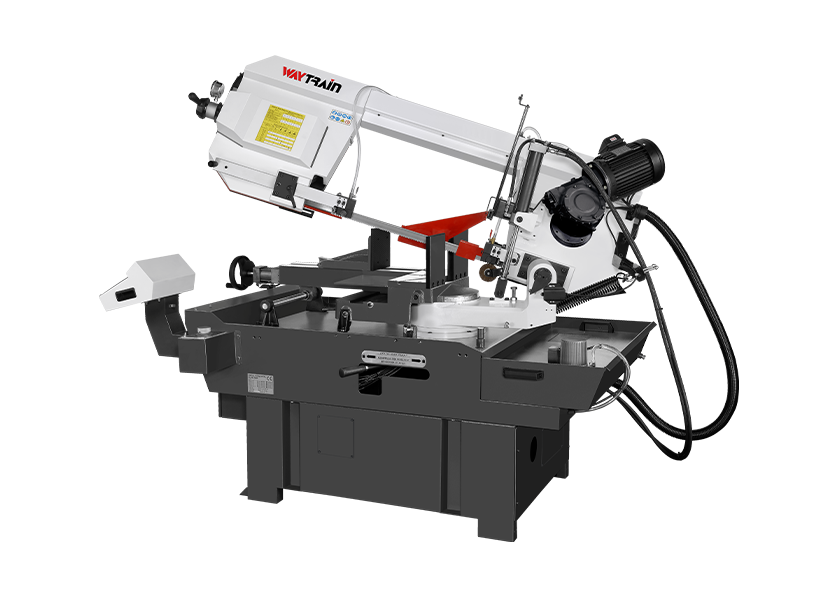

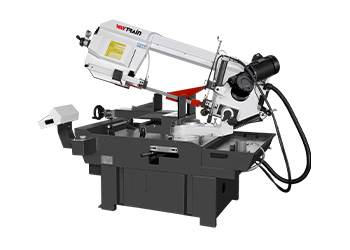

19'' Semi-Auto European Band Saw
/WG-500DSA.jpg)
H 250 W 500
- Swivel saw bow to get angle cutting (R60˚ L45˚)
- Inverter controls variable blade speed

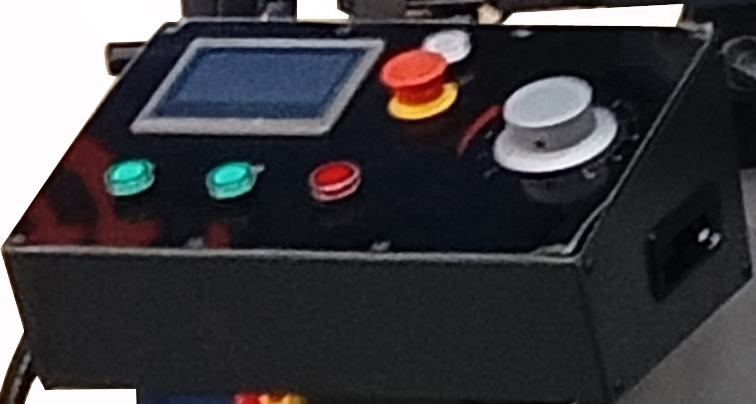

- HMI control panel build-in error conditions with display on screen (DSAH)
- The telescopic control box can reduce volumetric efficiency
- Rack type quick action vise and hydraulic vise clamping
- The separation of down feed knob from control panel is easier to operate
- Mobile coolant tray is convenient for catchment during the angle cutting
- The dovetail working table is smooth movement for sliding vise base
- The linear bearing is used in the sliding vise base for operational method and achieve high precision positioning
- Material feeler is used to detect cutting height automatically to reduce cutting cycle time
- Blade broken detection
- Blade tension gauge
Specifications
| Capacity 90° (H x W) |  350 mm 330 mm 200 x 500 mm |
Capacity 45° (H x W) | 330 mm 250 mm 145 x 340 mm |
| Capacity 60° (H x W) | 210 mm 135 mm 125 x 220 mm |
Capacity 45°(L) (H x W) | 290 mm 230 mm 60 x 345 mm |
| Blade Size | 34 x 1.1 x 3880 mm | Blade Speed | 20 ~ 85 mpm |
| Blade Motor | 3 HP (2.2 kw) | Hydraulic Motor | 1 / 2 HP (0.38kw) |
| Coolant Motor | 1/8 HP (0.1kw) | Container Loads | 6 units / 20';12 units / 40' |
| Packing Size | 2240 x 930 x 1770 mm | N.W./G.W. | 677 kg / 757 kg |
